Quick overview from the supplier:

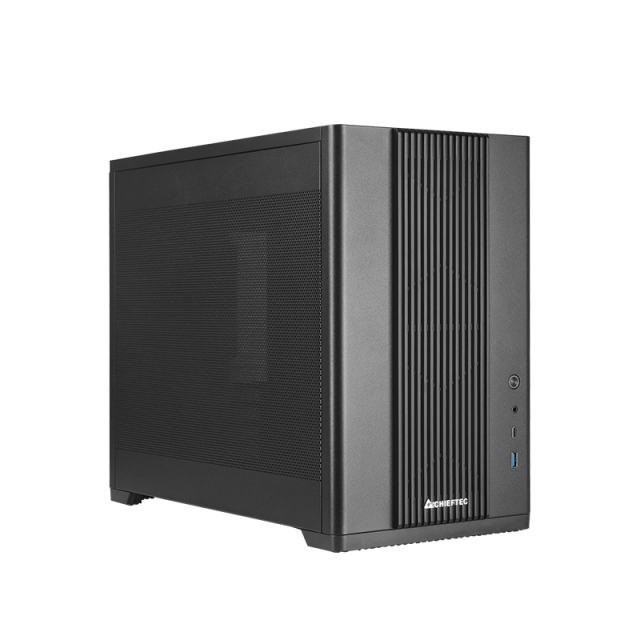

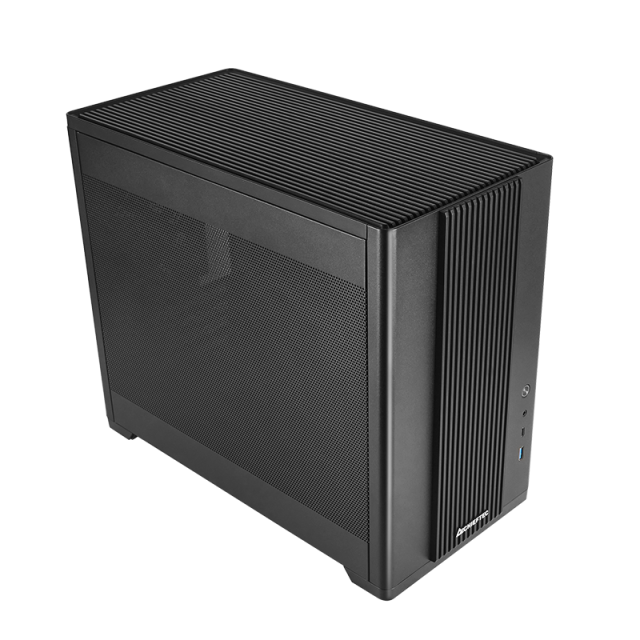

Case mATX Chieftec BX-Mesh, w/o PSU, 0.6mm, 1x120mm, Mesh Side panel, USB-C, USB3.2, 3x2.5", 1x3.5", Black
.
Model BX-MESH
Article no. BX-10B-M-OP
EAN code 0753263078414
Color Black
Material 0.6mm SPCC
Motherboard support Mini ITX, mATX
Dimension (DxWxH) 415mm x 204mm x 325mm + (15mm feet)
Drive bay external -
Drive bay internal 1 x 3,5" & 3 x 2,5" or 4 x 2.5”
Power supply ATX PSU (optional, ~180mm recommended if GPU >300mm installed)
Front I/O 1x USB3.2 Gen1 Type-A, 1x USB 3.2 Gen1 Type-C, Audio-Out/Mic-In
Scope of delivery Set of screws , 1x 120mm PWM fan pre-installed
Expansion slots 4
Cooling Compatibility Bottom: 3x 120mm or 2x 140mm (140mm only with ITX board)

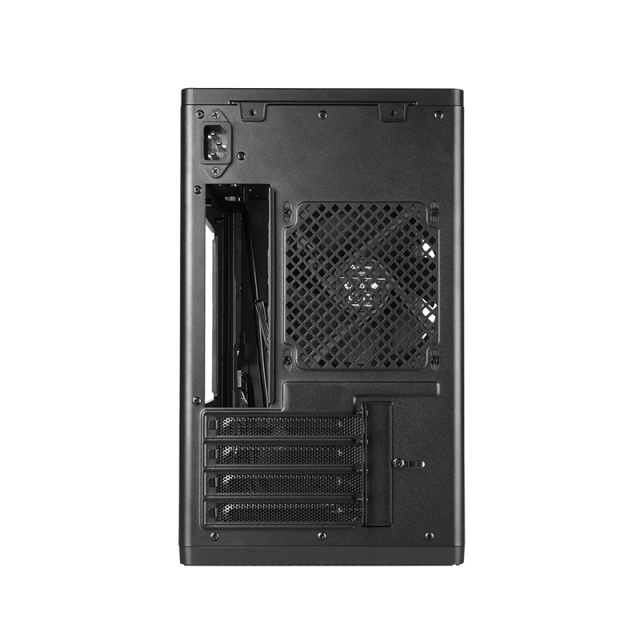

Rear: 1x 120mm pre-installed
Top: 2x 120mm or 2x 140mm fans or 240mm radiator
CPU cooler height (max.) 165mm
VGA card length (max.) 380mm (300mm, if PSU longer than 180mm installed)
