Quick overview from the supplier:
Case mATX Chieftec Pro Mini, w/o PSU, 0.6mm, 1x120mm, Sound-absorbing material, 1xUSB-C, 1xUSB3.0, 1xUSB2.0, 2x2.5", 1x3.5", Black
.
Model Pro mini
Article no. AZ-01B-OP
EAN code 0753263078674
Color Black
Material Material 0.6mm SPCC; Sound-absorbing material added to the front, left and right panels
Motherboard support Mini ITX, mATX
Dimension (DxWxH) 360mm x 212mm x 420mm
Weight (without/with package) 5.15 kg / 6.0 kg
Drive bay external -
Drive bay internal 2x 2.5" and 1x 3.5“
Power supply ATX PSU (optional, ~180mm)
Front I/O 1x USB Type C, 1x USB3.0, 1x USB2.0, Audio-out (AZALIA / HD-Audio), Mic-In
Scope of delivery Set of screws, instruction manual

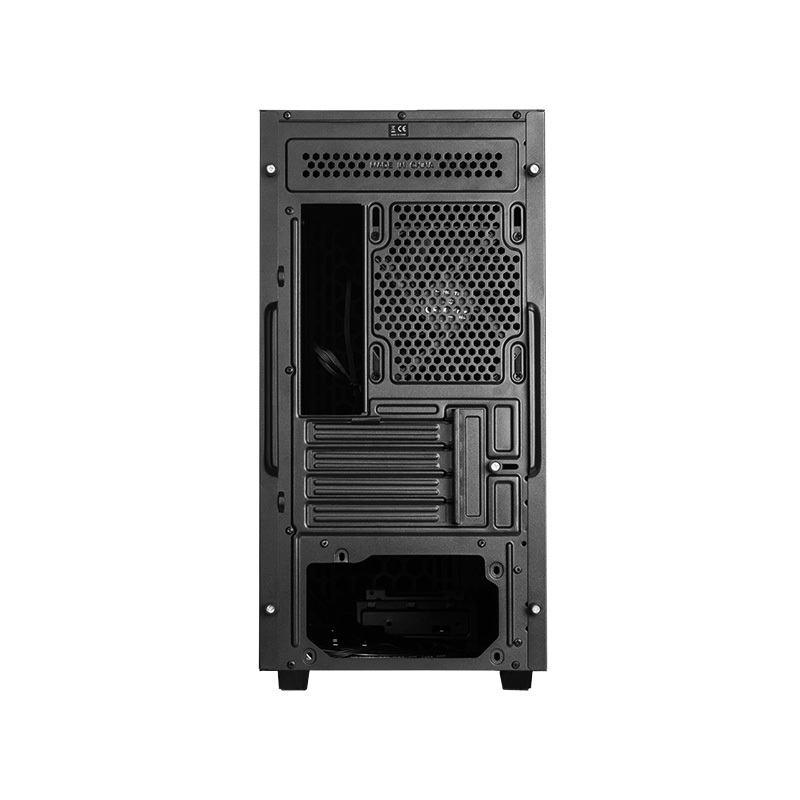

Rear: 1x 120mm PWM fan pre-installed
Expansion slots 4
Cooling Compatibility Front: 3x 120mm / 240mm radiator / 280mm radiator / 360mm radiator
Top: 2x 120mm / 2x 140mm / 240mm radiator / 280mm radiator
Rear: 120mm
PSU Cover: 2 x 120mm
CPU cooler height (max.) 165mm
VGA card length (max.) 330mm
