Quick overview from the supplier:

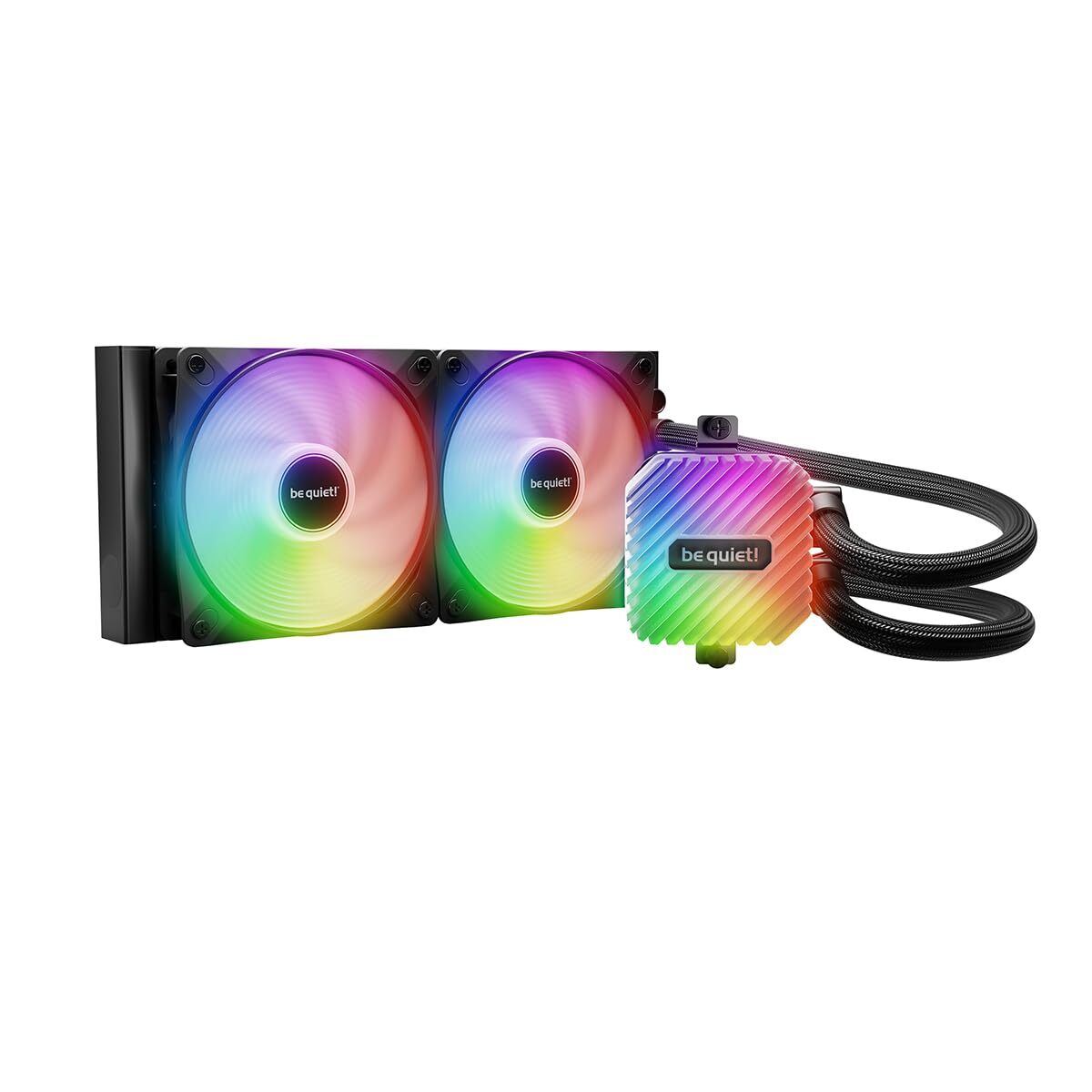

AIO Liquid Cooling be quiet! "Light Loop 240mm" (15.4-34.9dB, 2x120mm ARGB fans, PWM, 2100RPM, ARGB Block, ARGB-PWM-Hub, 1200g.)
.
Intel 1700 / 1200 / 1150 / 1151 / 1155
AMD AM5 / AM4
General data
Model Light Loop 240mm
Color option Black
Dimensions radiator, incl. fan (H x W x D), (mm) 277 x 120 x 52
Dimensions cooling block (H x W x D), (mm) 75 x 94 x 82
Total weight (kg) 1.2
Socket compatibility Intel 1700 / 1200 / 1150 / 1151 / 1155
Socket compatibility AMD AM5 / AM4
Noise level (dB(A)) at 50% / 75% /100% rpm 15.4 / 27.2 / 34.9
Number of fans 2
Lighting connector 3 Pin 5V Adressable
Tube length (mm) 400
Refill port ✓
Infographics
open all / close all
Pump specifications
Pump speed (rpm) 2900
Pump adjustable (rpm) 1500 - 2900
Pump connector 4-pin PWM

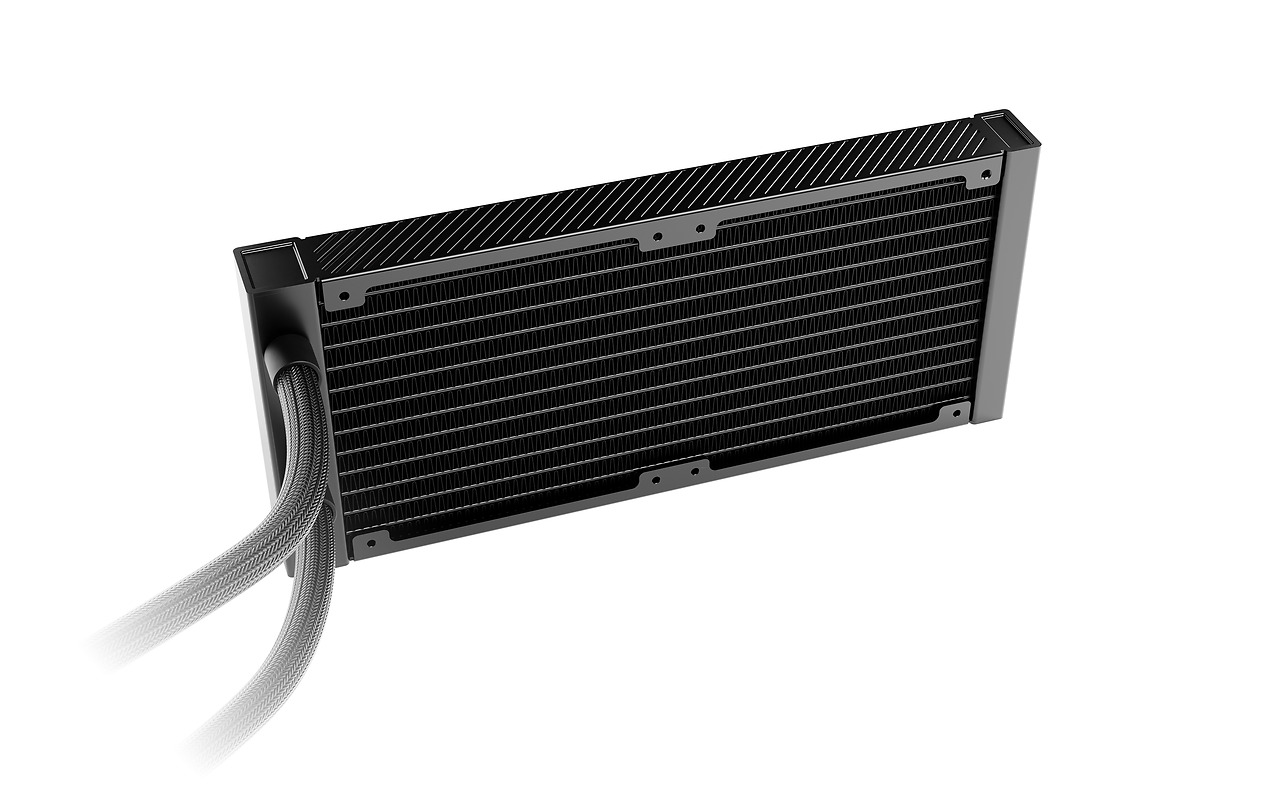

Radiator specifications
Dimensions (L x W x H), (mm) 277 x 120 x 27
Radiator material / finish aluminum / black spray painted
Base material / finish copper / nickel plated
Fan specifications
Fan model Light Wings LX 120mm PWM high-speed
Fan dimensions (mm) 120 x 120 x 25
Speed at 100% PWM (rpm) 2100
Airflow at 100% PWM / 12V (CFM / m3/h) 61.8 / 105.1
Air Pressure at 100% PWM / 12V (mm H2O) 2.51
Bearing technology Rifle
Motor technology 4-pole fan motor
Rated Voltage (V) 12
Input current (A) 0.17
Safety current (A) 0.45
Input power (W) 5.4
Connector 4-pin PWM
Cable length (mm) 500
Lifespan (h / 25°C) 60,000

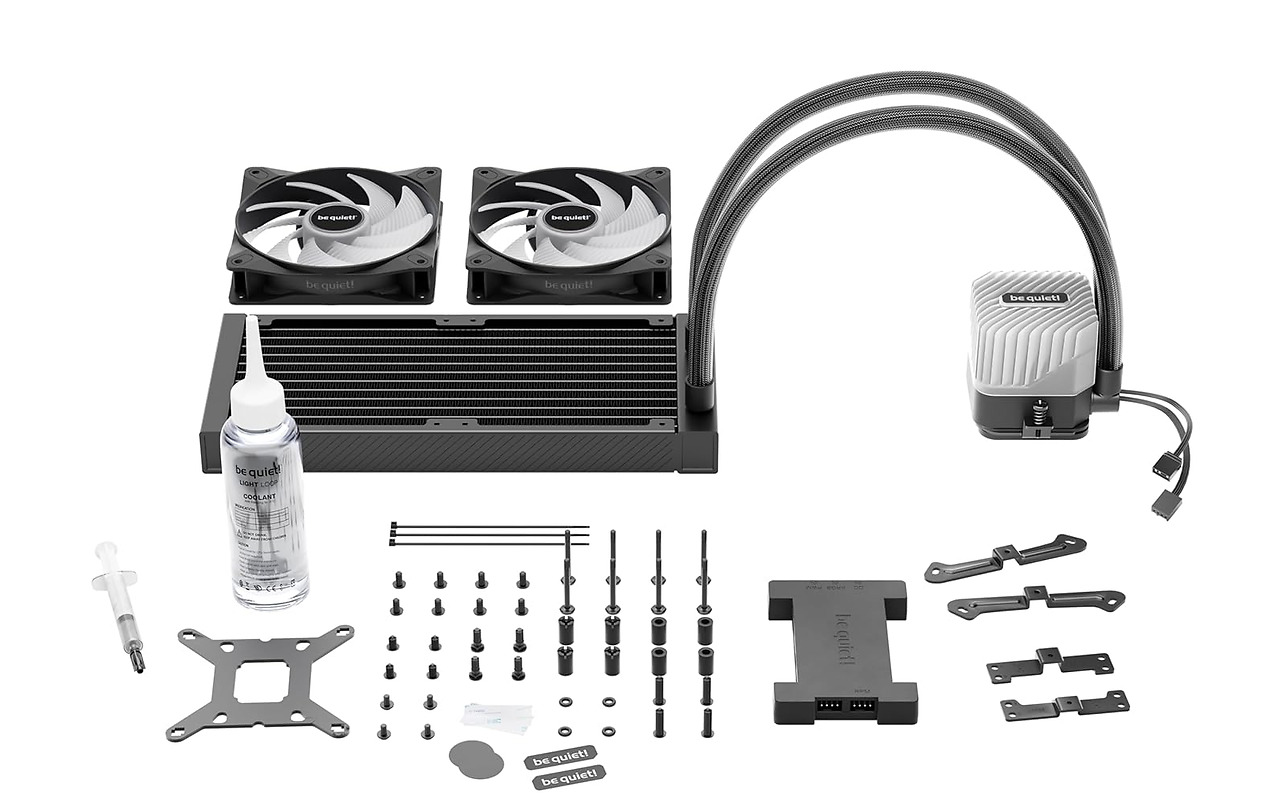

Accessories
Thermal grease (Type) Included
Mounting set Intel, AMD
Bottle of coolant (ml) ✓/ 100
ARGB-PWM-Hub ✓
User manual languages CN, DE, EN, ES, FR, JP, PL, RU, TW, UA
Safety certifications
Approvals CE, FCC, UKCA
Environmental directives
RoHS ✓
WEEE ✓
Triman ✓
Service
Warranty (Years) 3
International hotline / free of charge ✓/ DE, FR
Logistics data and RRP
Article number BW020
EAN code 4260052191125
Dimensions, package (L x W x H), (mm) 322 x 205 x 137
Gross weight, package (kg) 2.1
Pieces per packaging unit 6
Dimensions, shipping box (L x W x H), (mm) 440 x 340 x 460
Gross weight, shipping box (kg) 13.7
