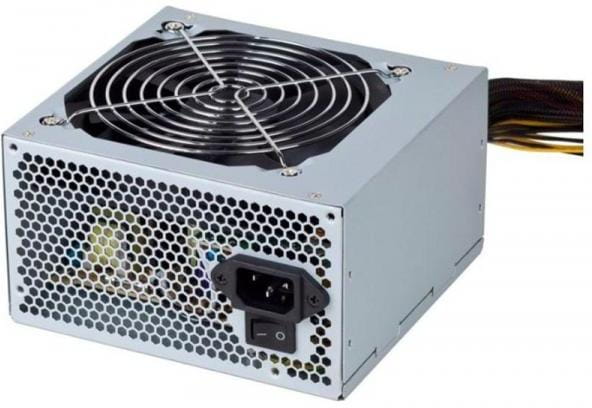

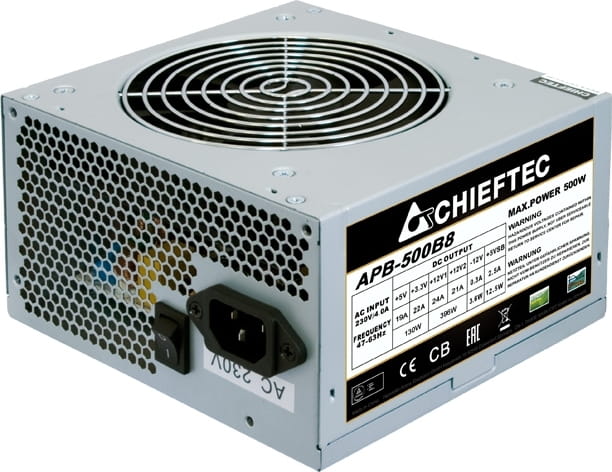

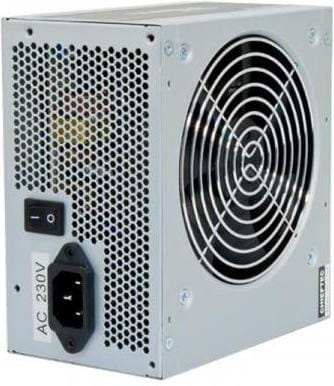

Chieftec VALUE APB-500B8 / 500W / Active PFC

Prezentare generală de la furnizor:

Power Supply ATX 500W Chieftec VALUE APB-500B8, 80+, 120mm, Active PFC, w/o power cord . Performance AC Input: 200-240V / 4.0A Frequency: 47-63 Hz +5V: 17.0A +3,3V: 18A +5V & +3,3V combined: 110W +12V: 38A / 456W P.F.: >0,9 -12V: 0,3A / 3,6W +5VSB: 2,5A / 12,5W Maximum Load: 500W Connectors 20+4PIN ATX 1 8PIN EPS (4+4) 1 8PIN (6+2) PCIe 1 MOLEX 2 Floppy 1 SATA 3 Cable length 20+4PIN ATX 500 8 PIN EPS (4+4) 350 8 PIN PCIe (6+2) 350 MOLEX 350/150/150 FLOPPY MOLEX SATA 350/150/150 Features Specification: ATX 12V 2.3 Form factor: PS II Efficiency: 80 PLUS® 230V EU Dimension (DxWxH): 140 mm x 150 mm x 87 mm PFC: Active PFC (0,9) Fan: 120mm silent fan Security: AFC (Automatic Fanspeed Control) OPP (Overload protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Undervoltage protection) Warranty: 24 Months
