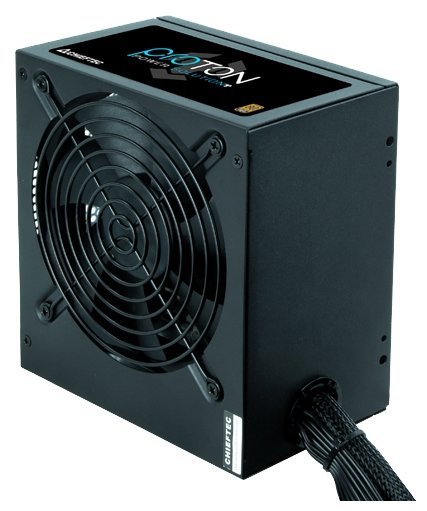

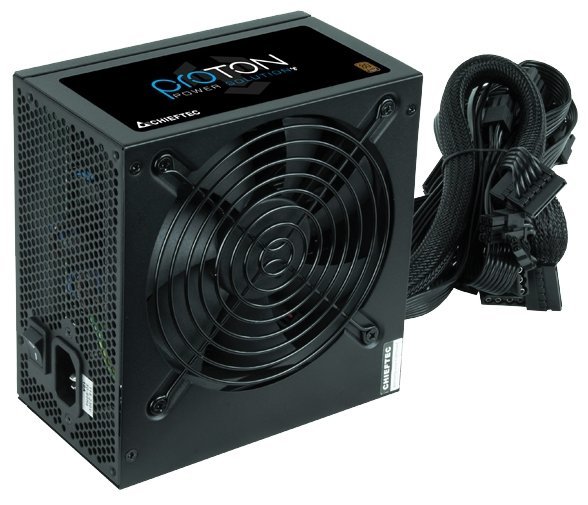

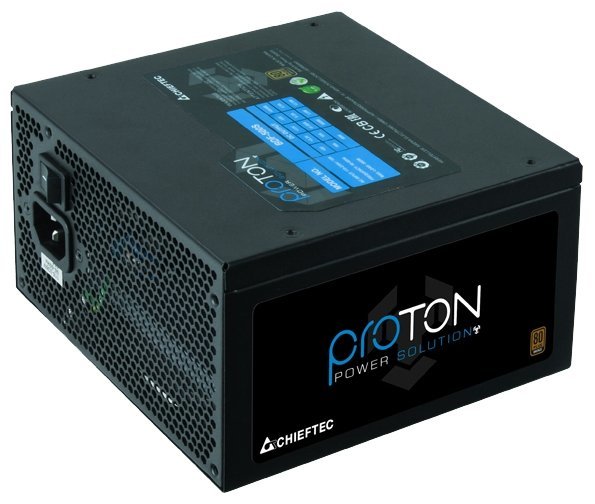

Sursă de alimentare PSU Chieftec PROTON BDF-600S / ATX / 600W

Prezentare generală de la furnizor:

Power Supply ATX 600W Chieftec PROTON BDF-600S, 80+ Bronze,120mm, DC/DC, Active PFC . Performance Model Proton 600W Article no. BDF-600S EAN code 4710713231276 Weight (without/with package) 1.60 kg / 1.95 kg AC Input 115-230V / 10A Frequency 50-60Hz +5V 18A +3.3V 18A +5V & +3.3V combined 103W +12V 1 600W / 50.00A P.F. >0.9 -12V 0.3A / 3.6W +5VsB 2.5A / 12.5W Maximum Power 600W Connectors 24PIN ATX 1 8 PIN EPS (4+4) 1 8 PIN PCIe (6+2) 2 SATA 6 MOLEX 3 Cable length 24PIN ATX 450 8 PIN EPS (4+4) 550 8 PIN PCIe (6+2) 450/150 SATA 2x 400/150/150 MOLEX 400/150/150 Features Specification ATX 12V 2.3 Form factor PS II Efficiency 80 PLUS® Bronze Dimension (DxWxH) 140 mm x 150 mm x 87 mm PFC Active PFC Fan 120mm silent fan Security AFC (Automatic Fanspeed Control) OCP (Overcurrent Protection) OPP (Overload Protection) OTP (Over Temperature Protection) OVP (Overvoltage Protection) SCP (Short-circuit Protection) SIP (Surge & Inrush Protection) UVP (Undervoltage Protection) Warranty 24 Months
