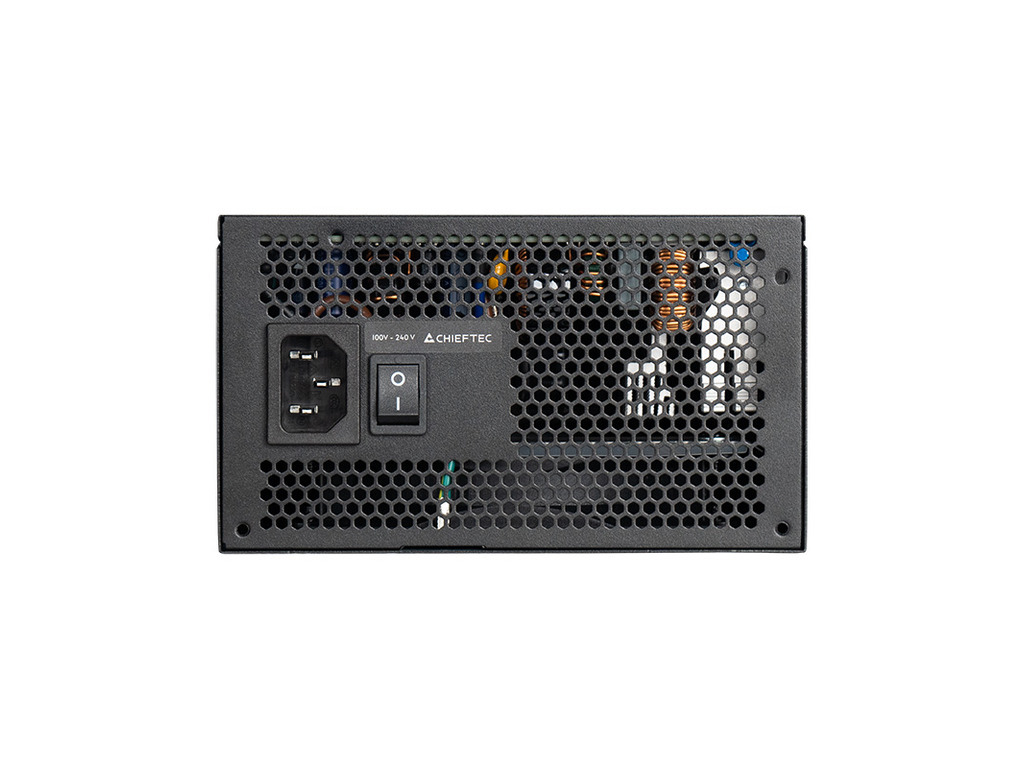

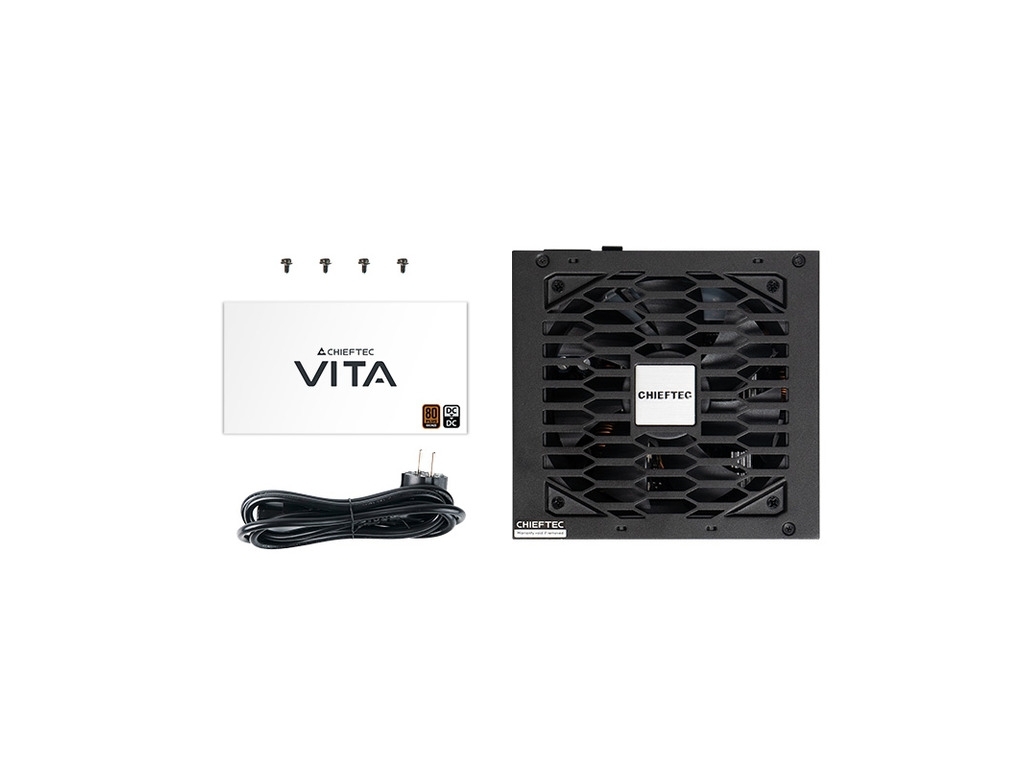

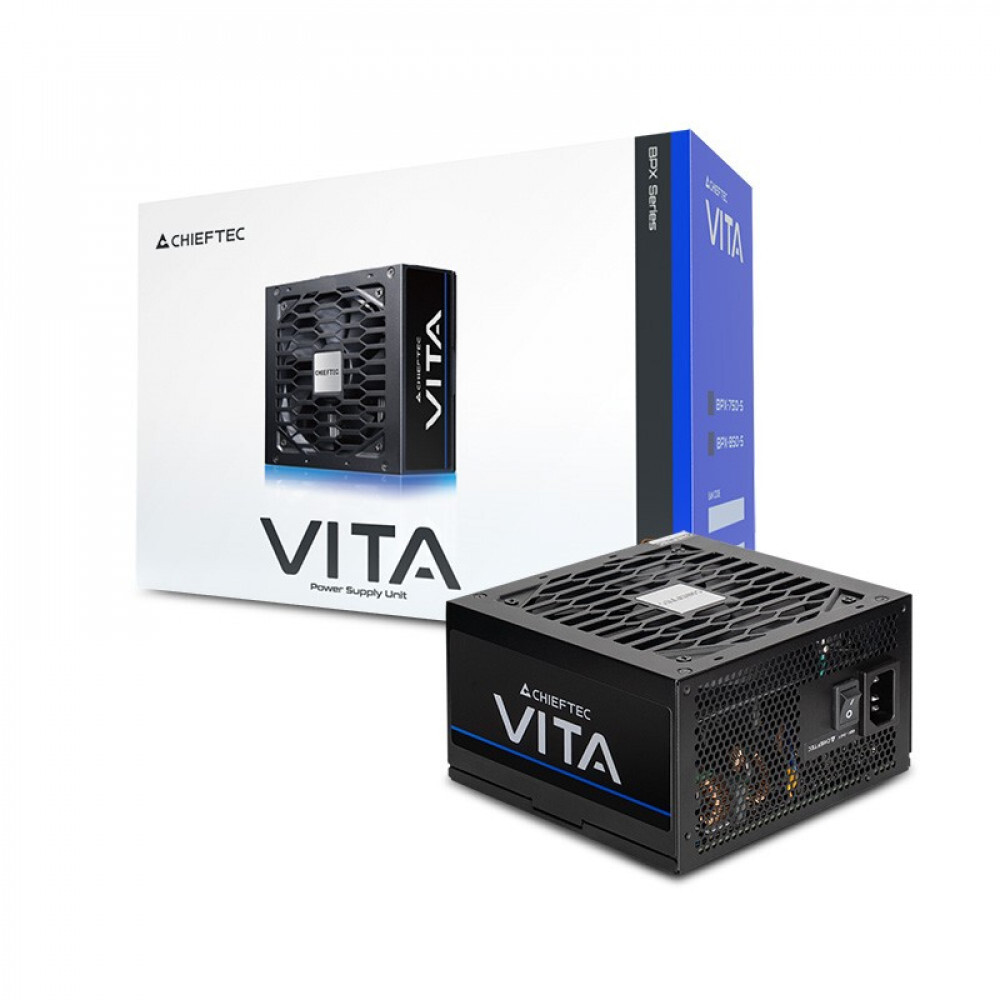

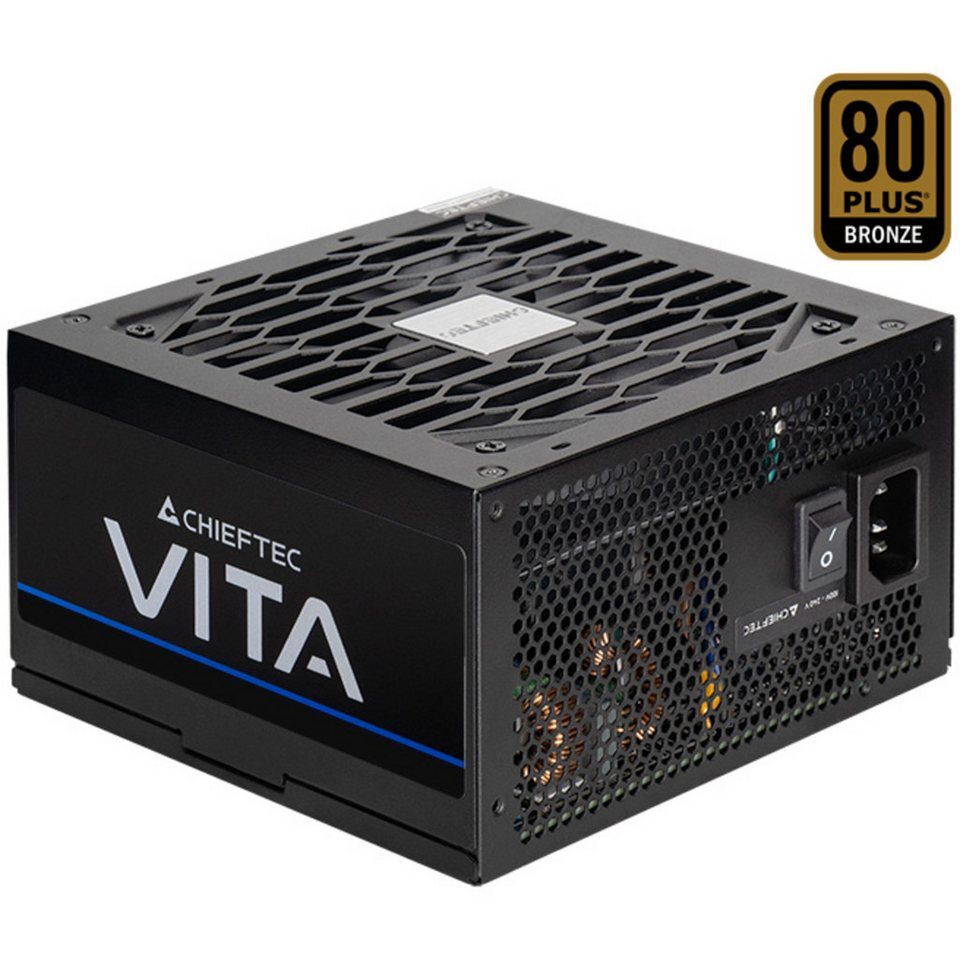

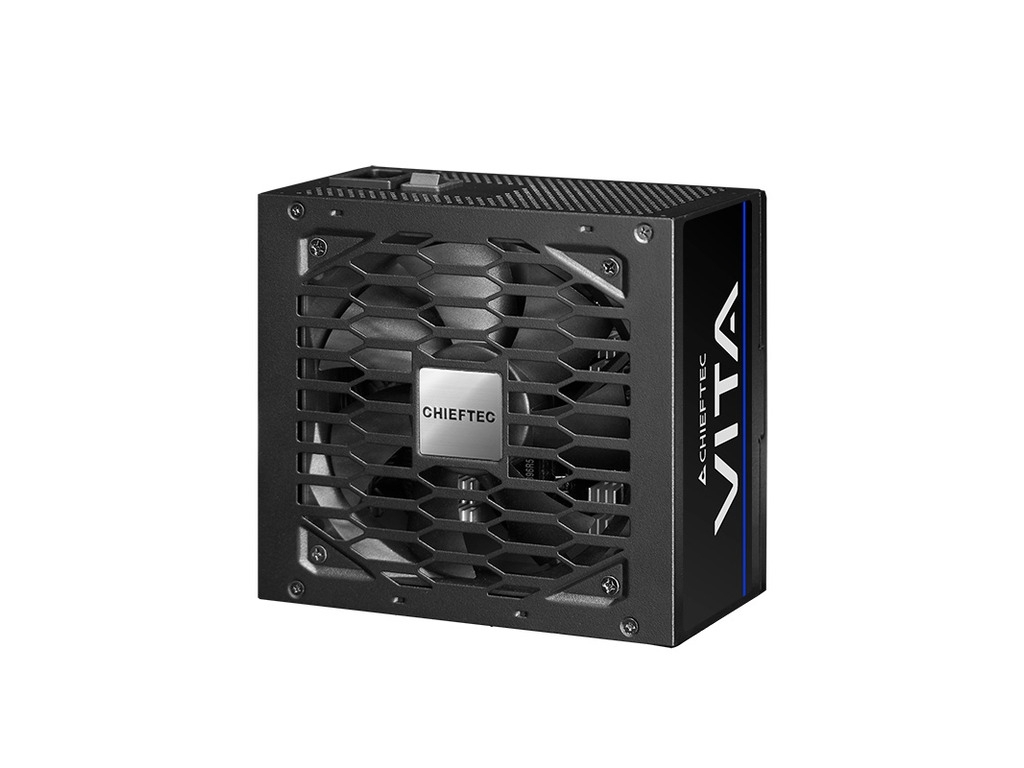

Chieftec VITA BPX-750-S / 750W

Prezentare generală de la furnizor:

Power Supply ATX 750W Chieftec VITA BPX-750-S, 80+ Bronze, 120mm, Active PFC, DC/DC, Long black flat cables, Black . PN: BPX-750-S TECHNICAL DATA Model Vita 750W Article no. BPX-750-S  EAN code 0753263078629 Weight (without/with package) 1.9kg / 2.7kg AC Input 100-240V~ / 9-4.5A Frequency 50 - 60Hz +5V 18A +3,3V 18A +5V & +3,3V combined 100W +12V1 62.5A +12V2 - +12V1, +12V2 combined 750W P.F. >0.9 -12V 0.3A / 3.6W +5VSB 3.0A / 15W Maximum Power 750W Connectors 20+4 PIN ATX 1 8 PIN EPS (4+4) 2 8 PIN PCIe (6+2) 4 SATA 6 MOLEX 2 Cable length (mm) 20+4 PIN ATX 650 8 PIN EPS (4+4) 2 x 700 8 PIN PCIe (6+2) 2 x 500/150 SATA/MOLEX 2 x 450/150/150/150 Features ATX12V Version ATX 12V 2.53 Efficiency 80Plus  Bronze Dimension (DxWxH) 140 mm x 150 mm x 86 mm PFC Active PFC (0.9) Fan 120mm FDB fan Security AFC (Automatic Fan Speed Control) OPP (Overload Protection) OTP (Over Temperature Protection) OVP (Overvoltage Protection) SCP (Short-Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) OCP (Over-Current Protection)
