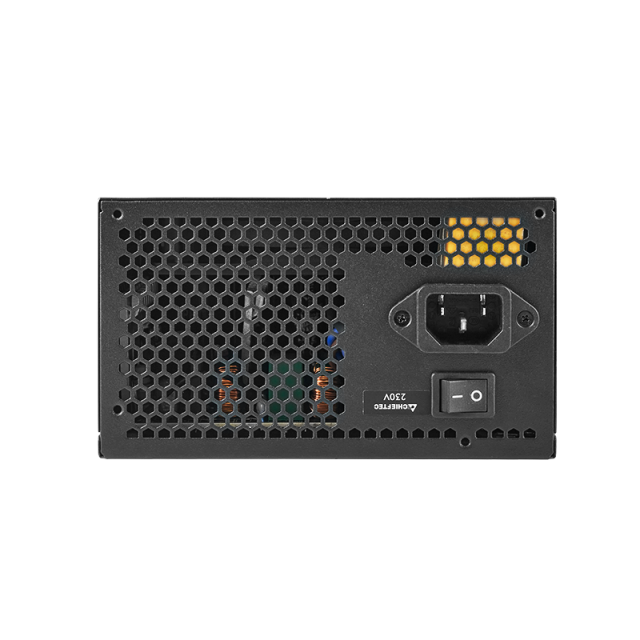

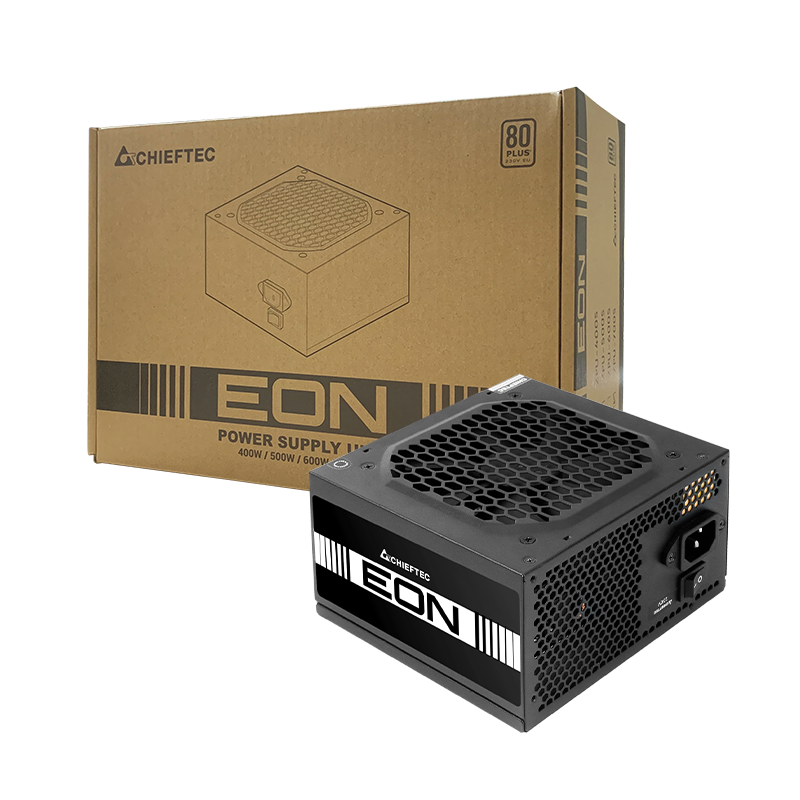

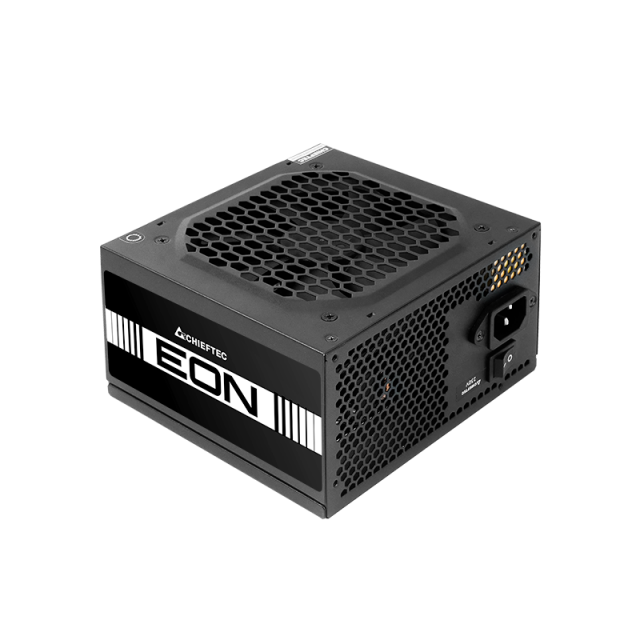

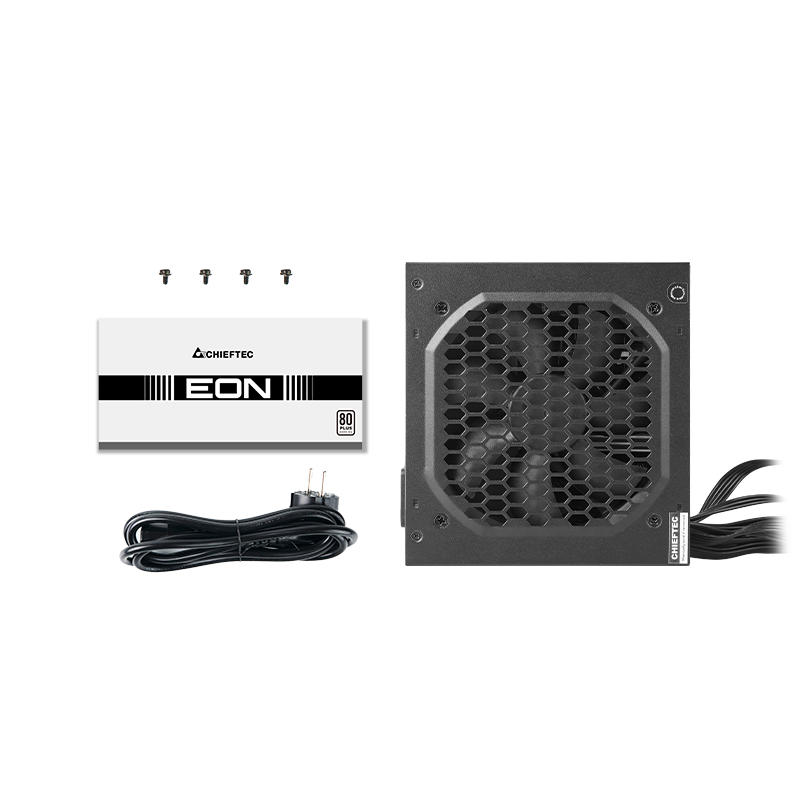

Chieftec EON ZPU-600S / 600W

Prezentare generală de la furnizor:

Power Supply ATX 600W Chieftec EON ZPU-600S, 80+, 120mm, Active PFC, Long cables, Black . TECHNICAL DATA Model EON 600W Article no. ZPU-600S EAN code  0753263078438 Weight (without/with package) 1.34kg / 1.62kg AC Input 200-240V / 4.5A Frequency 50Hz +5V 20A +3.3V 20A +5V & +3.3V combined 100W +12V1 45A +12V2 -- +12V1, +12V2 combined 540W P.F. >0.9 -12V 0.4A / 4.8W +5VSB 2.5A / 12.5W Maximum Power 600W Connectors 20+4 PIN ATX 1 8 PIN EPS (4+4) 2 8 PIN PCIe (6+2) 2 SATA 4 MOLEX/FLOPPY 2 Cable length (mm) 20+4 PIN ATX 650 8 PIN EPS (4+4) 700/100 8 PIN PCIe (6+2) 550/150 SATA 450/150/150 MOLEX/FLOPPY 450/150/150 Features ATX12V Version ATX 12V 2.3 Efficiency 80 PLUS® 230V EU Dimension (DxWxH) 140mm x 150mm x 86mm PFC Active PFC (0.9) (only 230V) Fan 120mm silent fan Security AFC (Automatic Fan Speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
