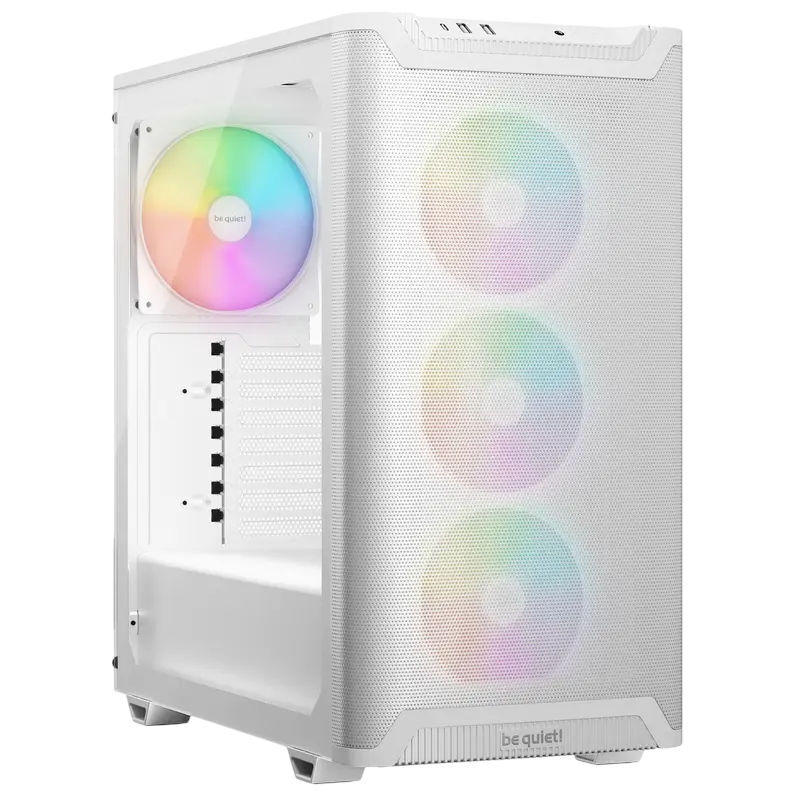

be quiet! Pure Base 501 LX / ATX White

Краткая информация от поставщика:

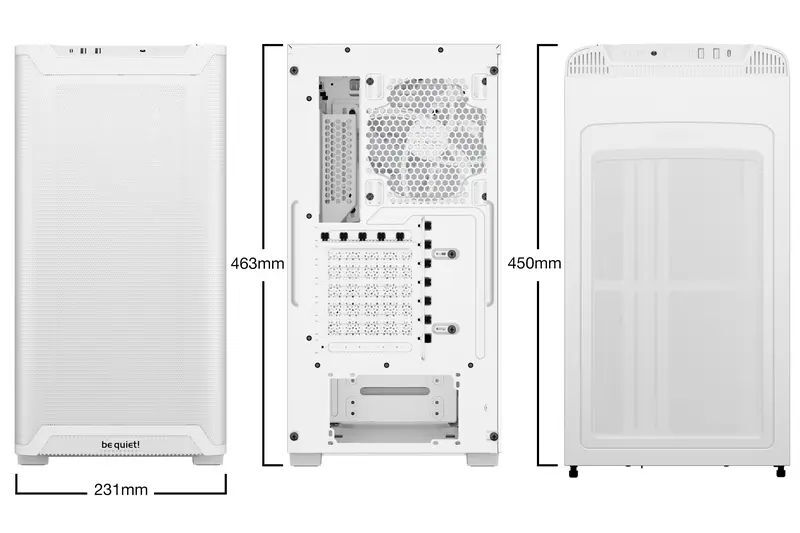

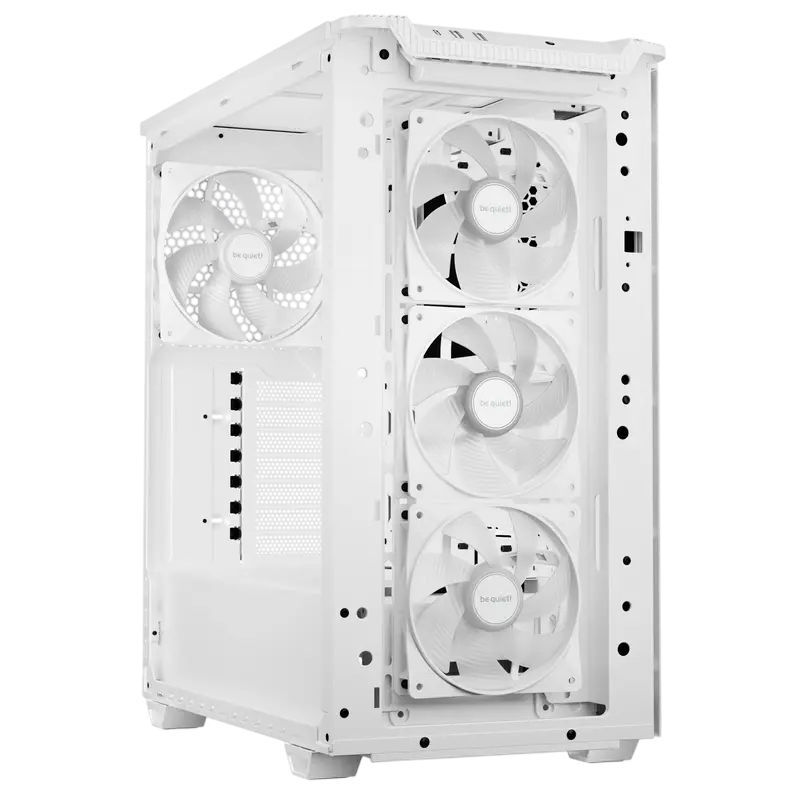

Case ATX be quiet! Pure Base 501 LX, w/o PSU, 3x120mm & 1x140mm ARGB, Front&Top Mesh, TG, Dust filters, 2xUSB 3.2, 1xUSB-C, 2x3.5", 5x2.5", White . General data Model Pure Base 501 LX White Color option White Motherboard compatibility ATX / M-ATX / Mini-ATX Case size excl. stands (L x W x H), (mm) 450 x 231 x 449 Case size incl. stands (L x W x H), (mm) 450 x 231 x 463 Volume (l) 24.4 PSU form factor ATX PS/2 Net weight (kg) 7.8 Expansion slots 7 Infographics Pre-installed fans Fan at front 3x Light Wings LX 120mm PWM Fan at rear 1x Light Wings LX 140mm PWM Dimensions (L x W x H), (mm) Front: 120 x 25 x 120 / Rear: 140 x 25 x 140 Fan speed at 100% PWM / 12V (rpm) 1600 / 1200 Airflow at 100% PWM / 12V (CFM / m3/h) 51.5 / 87.5 | 56.0 / 95.0 Air Pressure at 100% PWM / 12V (mm H2O) 1.34 / 0.90 Noise level at 100% PWM / 12V (dB(A)) 25.5 / 22.9 Voltage range (V DC) 5 - 13.2 Input power (W) 3.8 / 3.6 Input current (A) 0.10 / 0.09 Connector 4-pin PWM Lifespan (h / 25°C) 60,000 Maximum fan installation Maximum fans 6 Top (mm) 2x 140 / 2x 120 Front (mm) 2x 140 / 3x 120 Rear (mm) 1x 140 / 1x 120 Optional radiator installation Top (mm) 120 / 240 Front (mm) 120 / 140 / 240 / 280 / 360 Rear (mm) 120 / 140 PSU compatibility Maximum dimensions excl. bottom fan (mm) 200 Maximum dimensions incl. bottom fan (mm) 180 Graphics card HDD cage (in height of graphics card) installed (mm) 368 HDD cage (in height of graphics card) removed (mm) 368 Maximum PCIe slots with vertical graphics card (pcs.) 5 Drive bay capacity 3.5 slots (scope of delivery) 2 3.5 slots (max.) 2 2.5 slots (scope of delivery) 5 2.5 slots (max.) 5 Cooling Max.construction height of CPU cooler unit (mm) 178 Lighting I/O Panel USB 3.2 Gen. 2 Type C 1 USB 3.2 Type A 2 HD Audio I/O Mic + Audio Insulation and damping Top panel insulation mats ✓ Side panel insulation mats ✓ Anti-vibration decoupled HDD ✓ Anti-vibration decoupled fan ✓ Anti-vibration decoupled PSU ✓ Anti-vibration decoupled motherboard-tray ✓ Scope of delivery Screw set (Drives/Motherboard) ✓ Additional standoffs (pcs.) 1 Cable ties (pcs.) 12 Removeable dust filters Top 1 Front 1 Bottom 1
