Краткая информация от поставщика:

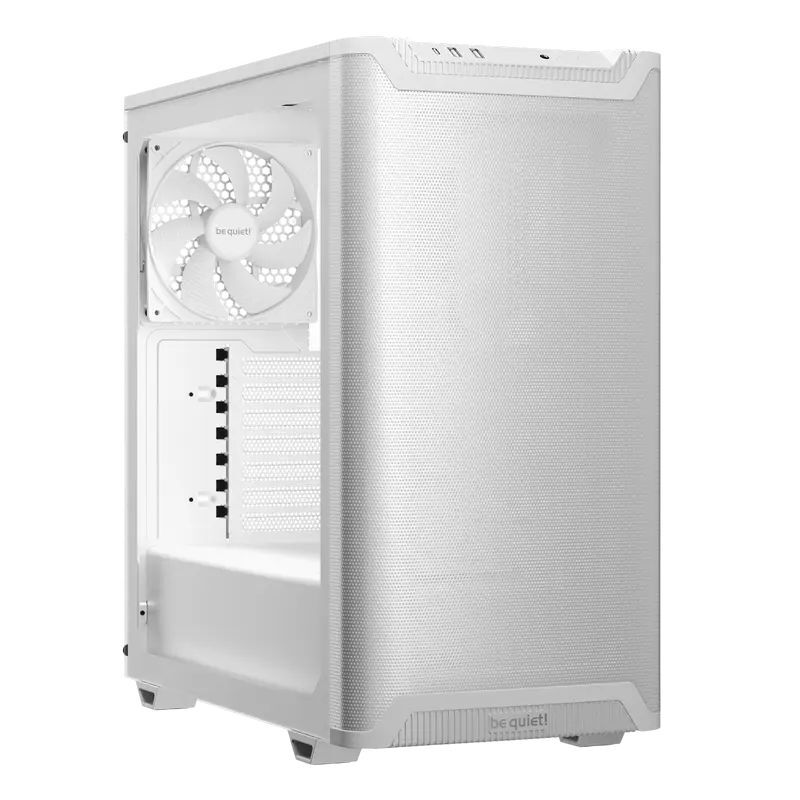

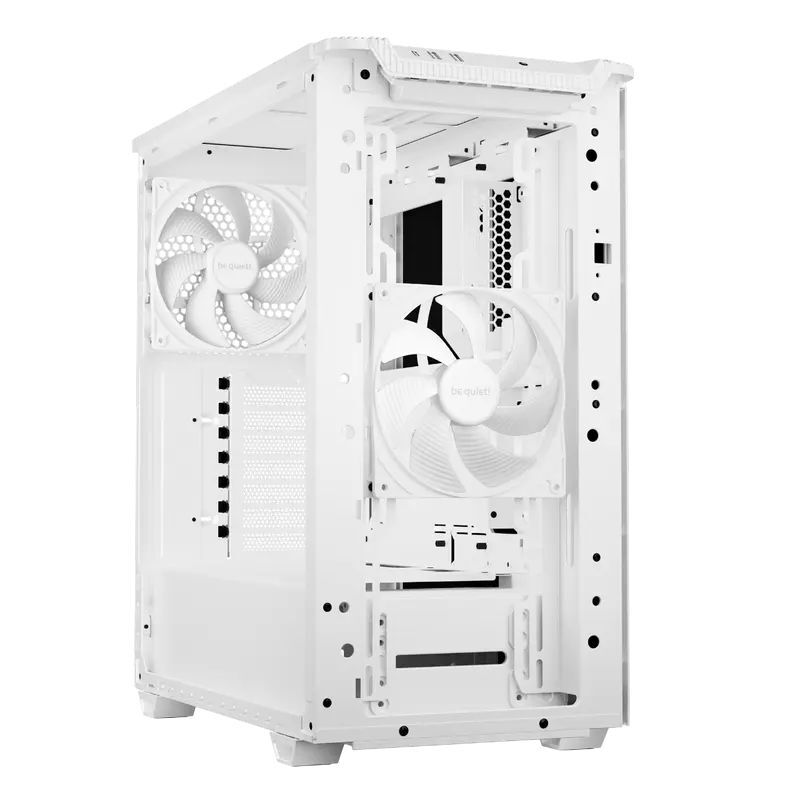

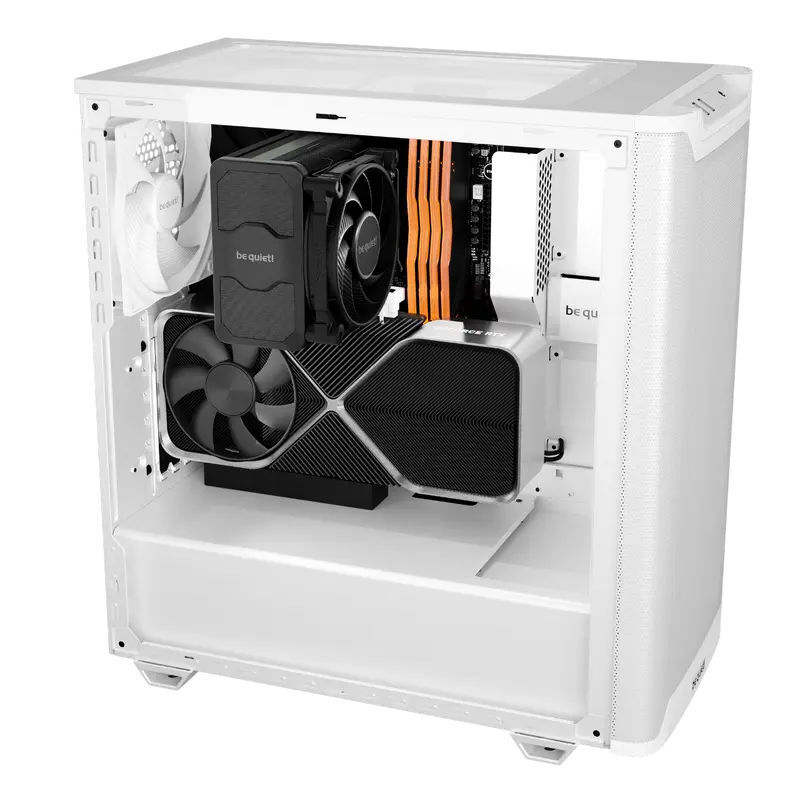

Case ATX be quiet! Pure Base 501 Airflow, w/o PSU, 2x140mm, Front&Top Mesh, Tempered Glass, PSU shroud, 1xUSB-C, 2xUSB 3.2, 2x3.5", 5x2.5", White
.
PN: BGW75
Model Pure Base 501 Airflow Window White
Color option White
Motherboard compatibility ATX / M-ATX / Mini-ATX
Case size excl. stands (L x W x H), (mm) 450 x 231 x 449
Case size incl. stands (L x W x H), (mm) 450 x 231 x 463
Volume (l) 24.4
PSU form factor ATX PS/2
Net weight (kg) 7.2
Expansion slots 7
Fan at front 1x Pure Wings 3 140mm PWM
Fan at rear 1x Pure Wings 3 140mm PWM
Dimensions (L x W x H), (mm) Front: 140 x 25 x 140 / Rear: 140 x 25 x 140
Fan speed at 100% PWM / 12V (rpm) 1200
Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5
Air Pressure at 100% PWM / 12V (mm H2O) 0.96
Noise level at 100% PWM / 12V (dB(A)) 21.9
Voltage range (V DC) 5 - 13.2
Input power (W) 3.6
Input current (A) 0.06
Connector 4-pin PWM
Lifespan (h / 25°C) 80,000
Maximum fans 6
Top (mm) 2x 140 / 2x 120
Front (mm) 2x 140 / 3x 120
Rear (mm) 1x 140 / 1x 120
Top (mm) 120 / 240
Front (mm) 120 / 140 / 240 / 280 / 360
Rear (mm) 120 / 140
Maximum dimensions excl. bottom fan (mm) 180
Maximum dimensions incl. bottom fan (mm) 180
Maximum PCIe slots with vertical graphics card (pcs.) 5
3.5 slots (scope of delivery) 2
3.5 slots (max.) 2
2.5 slots (scope of delivery) 5
2.5 slots (max.) 5
Max.construction height of CPU cooler unit (mm) 178

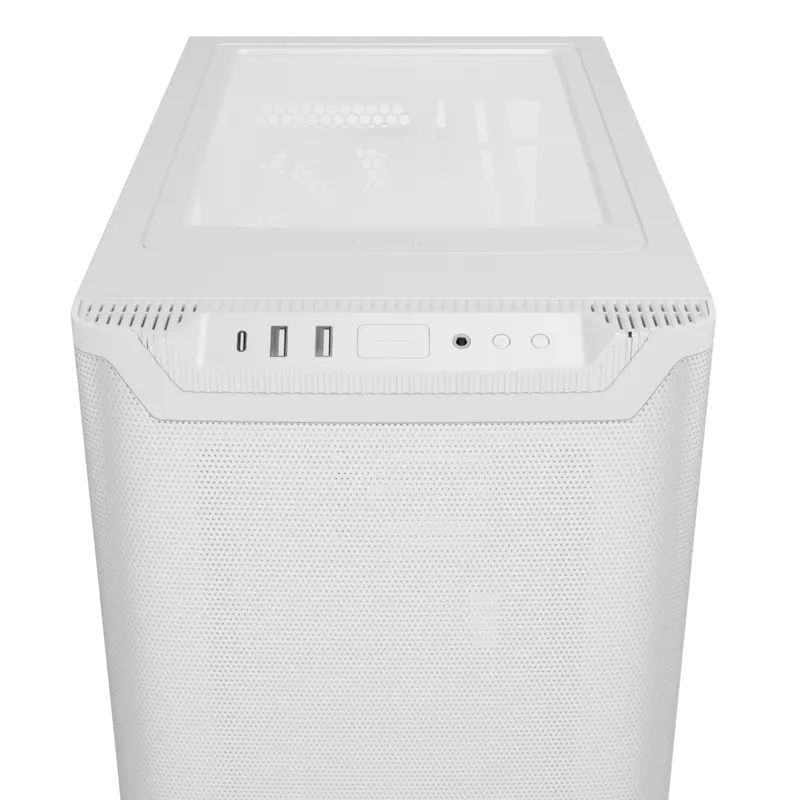

USB 3.2 Gen. 2 Type C 1
USB 3.2 Type A 2
HD Audio I/O Mic + Audio
Side panel insulation mats ✓
Anti-vibration decoupled HDD ✓
Anti-vibration decoupled fan ✓
Anti-vibration decoupled PSU ✓
Anti-vibration decoupled motherboard-tray ✓
