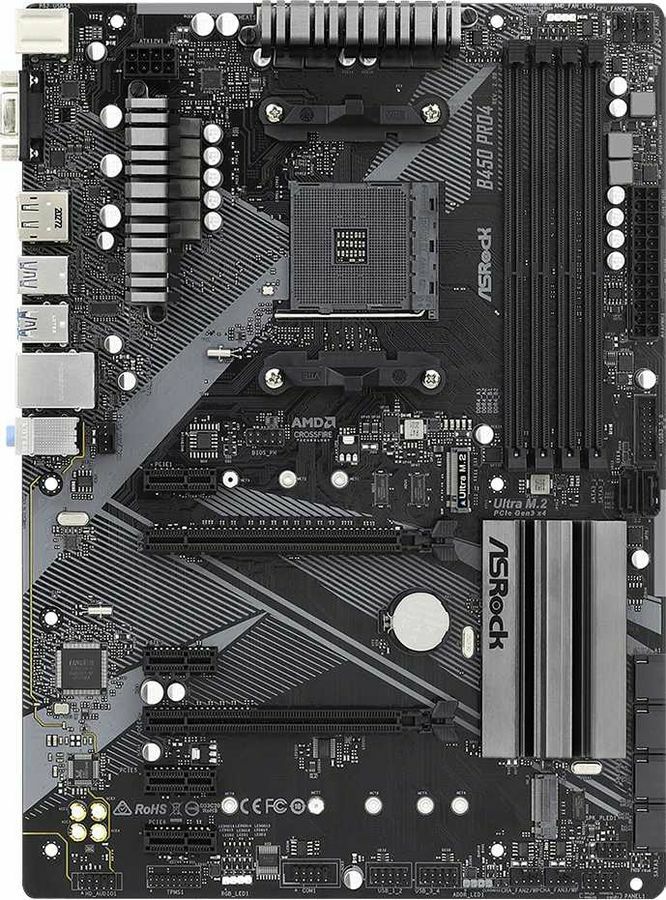

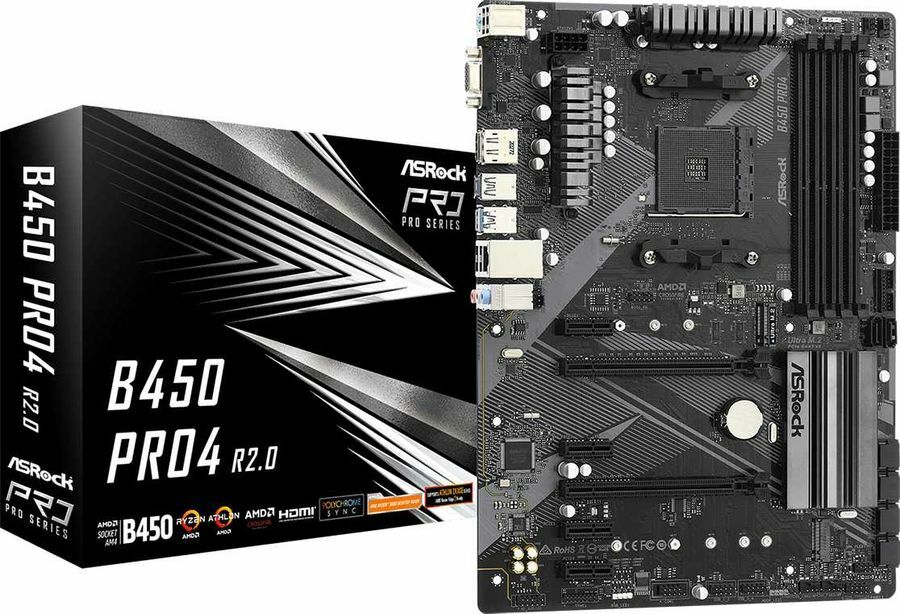

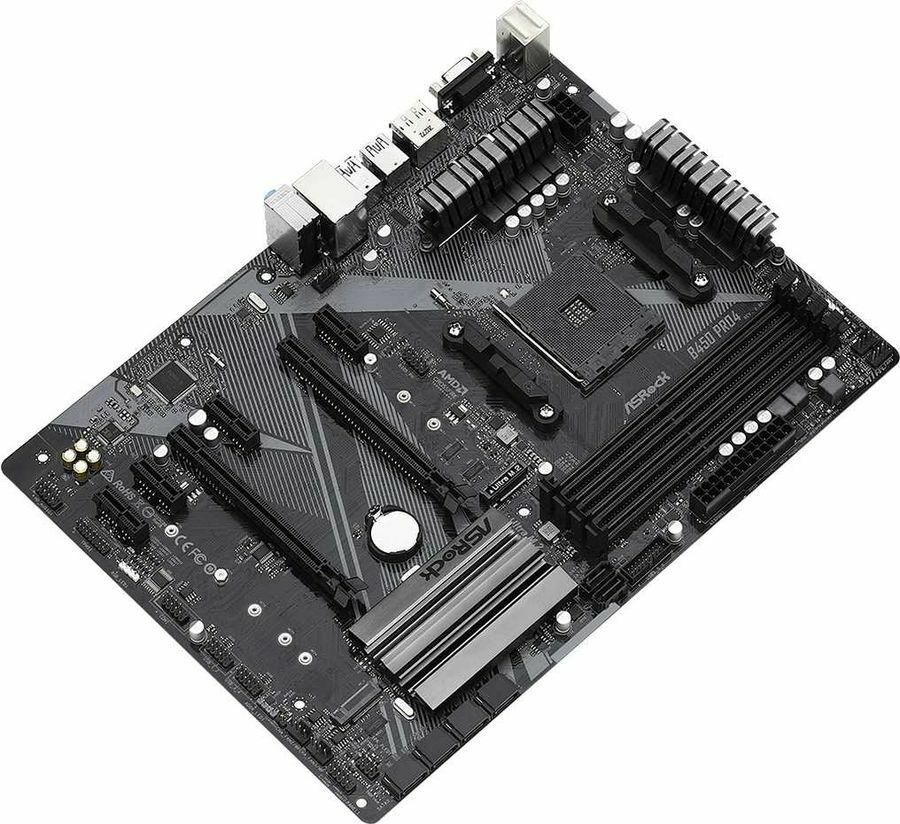

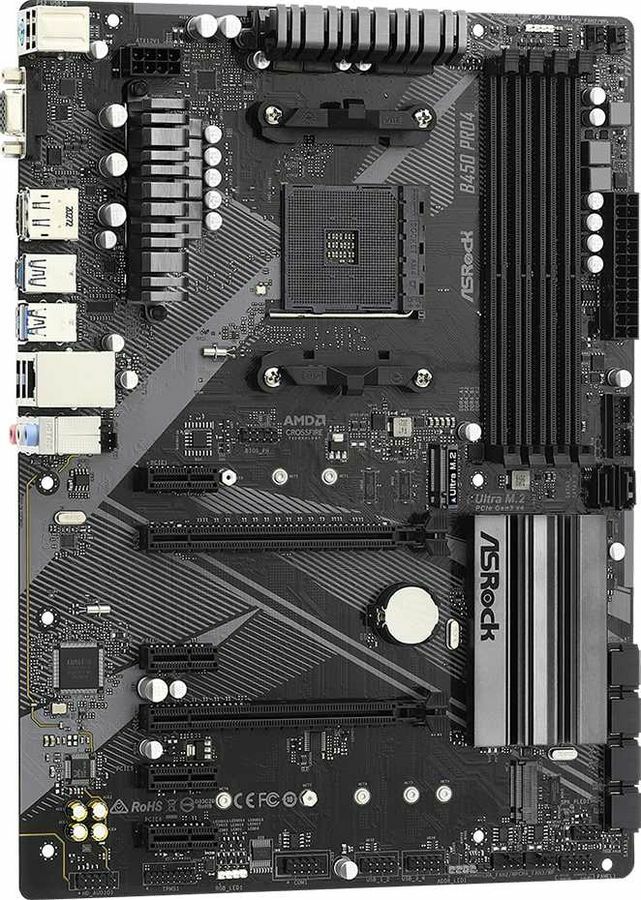

Placa de baza ASRock B450 PRO4 R2.0 / ATX AM4

Name: Placa de baza ASRock B450 PRO4 R2.0 / ATX AM4
Brand: ASRock
SKU: 135328
Price: 1717 MDL
Availability: OutOfStock

Scrie un review

Disponibilitate: Vîndut

Cod produs: 135328

Prezentare generală de la furnizor:

MB AM4 ASRock B450 PRO4 R2.0 ATX // CPU - Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors Chipset - AMD B450 Memory - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs support DDR4 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* - Max. capacity of system memory: 128GB* Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec) LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H Slots - 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)* - 4 x PCI Express 2.0 x1 Slots Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** USB - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Înscrie-te şi află despre apariţia produsului
Email

Acesta este un câmp obligatoriu.

Specificatii

Factor de formă	ATX
Conector (cpu)	AM4
Numărul de pini de alimentare (cpu)	4+4pin x1
Chipset	B450
Memory sticks, pcs. (ram)	4
Tip memorie (ram)	DDR4
Frecvenţa acceptată, MT/s (ram)	3200
Factor de formă	DIMM (calculator)
Numărul de sloturi PCI-E x16 (gpu)	2
Interfaţă PCI-E 5.0 x16 (gpu)	Nu
Numărul de sloturi M.2 PCIe (ssd)	1
Interfaţă M.2 PCIe 5.0 x4 (ssd)	Nu
Numărul de sloturi PCI-E x 1	4
Numărul de conectori SATA	4

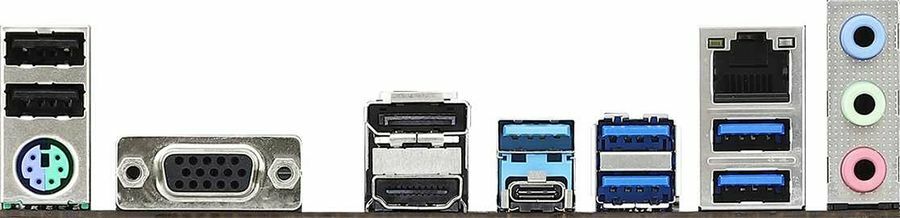

Panoul I/O din spate
USB Type-A	7
USB Type-C	1
Thunderbolt (Type-C)	Nu
Conector de reţea (RJ-45)	1Gb
Port HDMI	1
DisplayPort	1
DVI Port	Nu
VGA (D-Sub) Port	1
Conectorul PS/2	1
