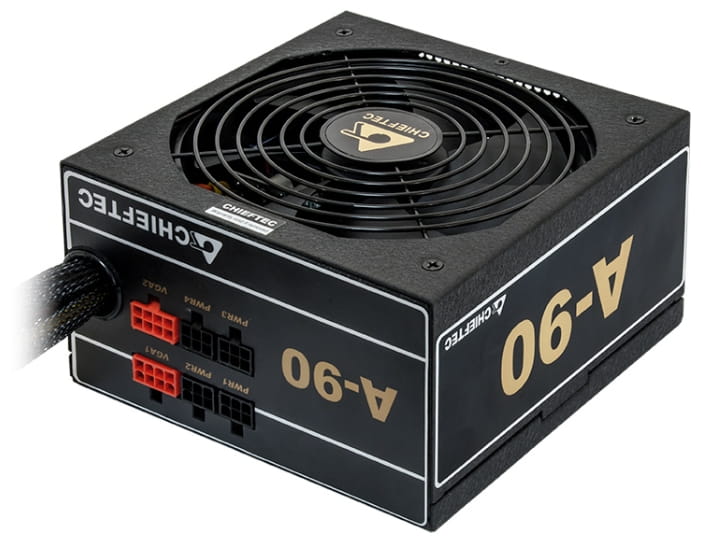

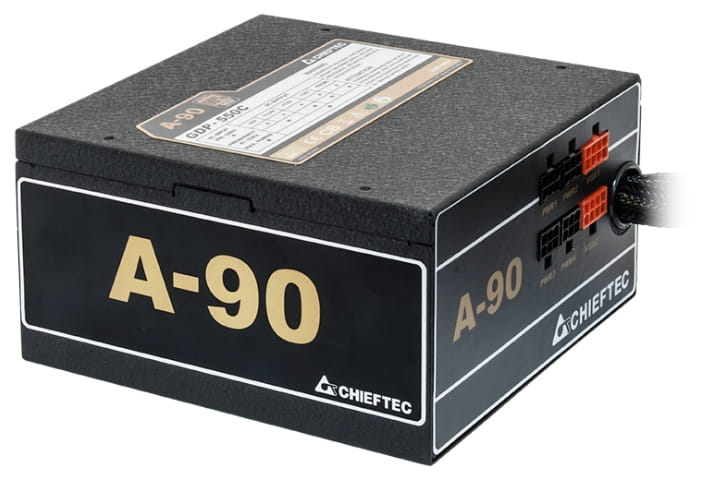

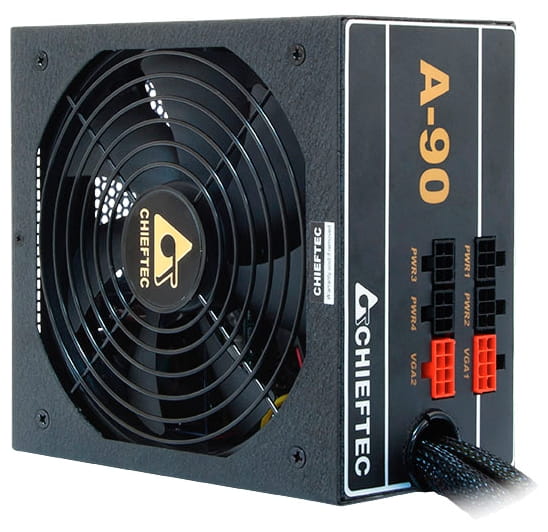

Sursă de alimentare Chieftec GDP-750C 750W

Prezentare generală de la furnizor:

Power Supply ATX 750W Chieftec A-90 GDP-750C, 90+, 140mm, Active PFC, Semi-modular, Black . Performance AC Input: 200-240V / 5A Frequency: 47 - 63Hz +5V: 22A +3,3V: 22A +5V & +3,3V combined: 120W +12V 1: 62A / 744W +12V 2: N/A +12V 1 & +12V 2 combined: N/A +12V 3: N/A +12V 4: N/A +12V 3 & +12V 4 combined: N/A P.F.: >0,9 -12V: 0,3A / 3,6W +5VSB: 2,5A / 12,5W Maximum Load: 750W Native cable 20x4PIN ATX: 1 SATA: - MOLEX: - Floppy: - 4PIN 12V: - 8PIN 12V: - 8PIN (4+4) 12V: 1 6PIN PCIe: - 8PIN (6+2) PCIe: - Modular cable: 24PIN ATX: - SATA: 8 MOLEX: 3 Floppy: 1 4PIN 12V: - 8PIN 12V: - 8PIN (4+4) 12V: - 6PIN PCIe: - 8PIN (6+2) PCIe: 4 Features Spezification: ATX 12V 2.3 Form factor: PS II Efficiency: >90% Dimension (DxWxH): 160 mm x 150 mm x 87 mm PFC: Active PFC (0,9) (only 230V) Fan: 140mm silent fan Security: UVP (Undervoltage protection) OVP (Overvoltage protection) SCP (Short-circuit protection) OPP (Overload protection) OCP (Overcurrent protection) OTP (Over Temperature Protection) AFC (Automatic Fanspeed Control) SIP (Surge & Inrush Protection) Warranty: 24 Month
