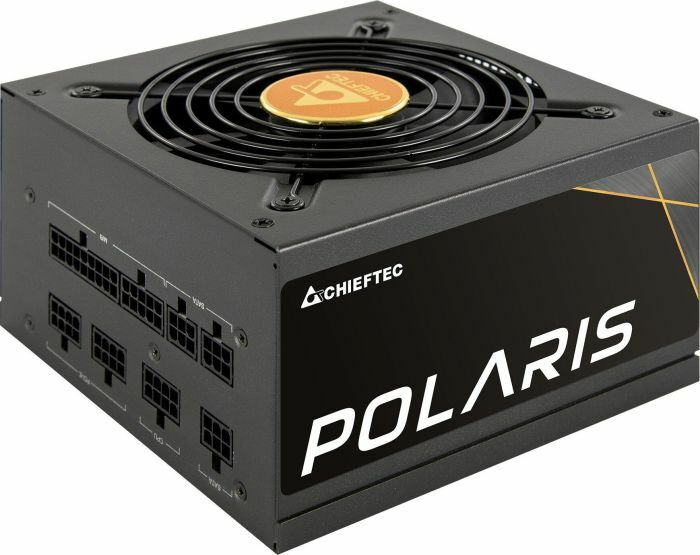

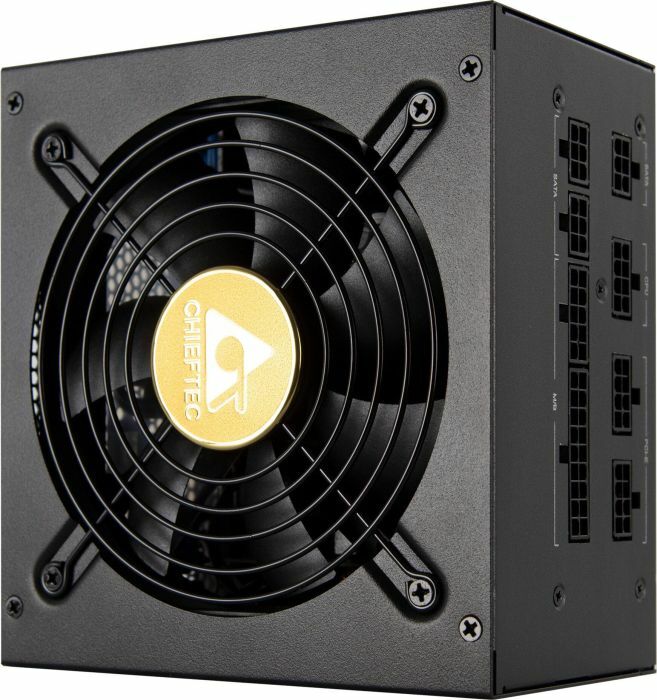

Sursa alimentare Chieftec POLARIS PPS-650FC ATX 650W

Prezentare generală de la furnizor:

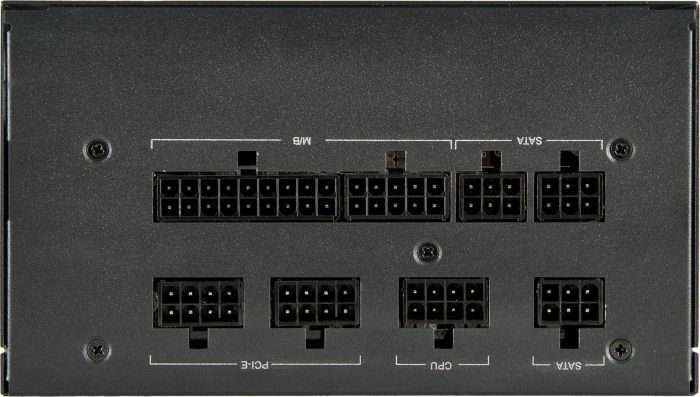

Power Supply ATX 650W Chieftec POLARIS PPS-650FC, 80+ Gold, 140mm, Active PFC, Half-Bridge LLC+DC/DC, Full Modular, Black . Performance Model Polaris 650W Article no. PPS-650FC EAN code 753263076434 Weight (without/with package) 2.175 kg / 2.480 kg AC Input 100-240V / 10A Frequency 50-60Hz +5V 22A +3,3V 22A +5V & +3,3V combined 120W +12V 1 54.2A / 650W +12V 2 - +12V 1 & +12V 2 combined - P.F. >0.9 -12V 0,3A / 3,6W +5VsB 3.0A / 15W Maximum Power 650W Connectors 20+4PIN ATX 1 8 PIN EPS (4+4) 2 8 PIN PCIe (6+2) 4 SATA 6 MOLEX 3 FLOPPY 1 Cable length 20+4PIN ATX 650 8 PIN EPS (4+4) 650/150 8 PIN PCIe (6+2) 2x 500/150 SATA 2x 450/150/150 MOLEX 450/150/150/150 FLOPPY Molex Features Specification ATX 12V 2.4 Form factor PS II Efficiency 80 PLUS® Gold Dimension (DxWxH) 140mm x 150mm x 87mm PFC Active PFC Fan 120mm silent fan Security AFC (Automatic Fanspeed Control) OCP (Overcurrent protection) OPP (Overload protection) OTP (Over Temperature protection) OVP (Overvoltage protection) SCP (Short-circuit protection) SIP (Surge & Inrush Protection) UVP (Undervoltage protection) Warranty 24 Months
