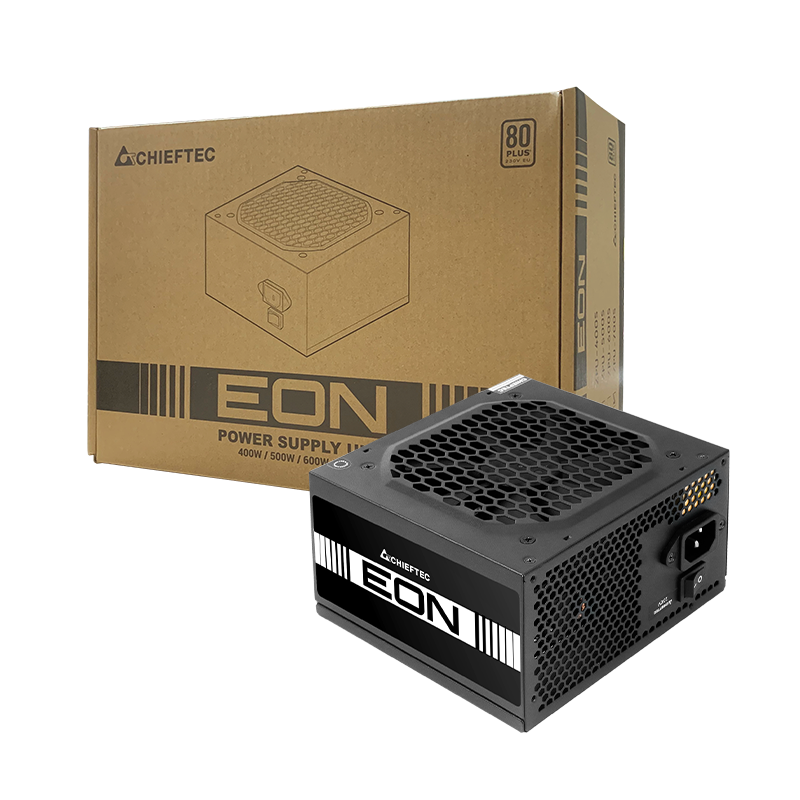

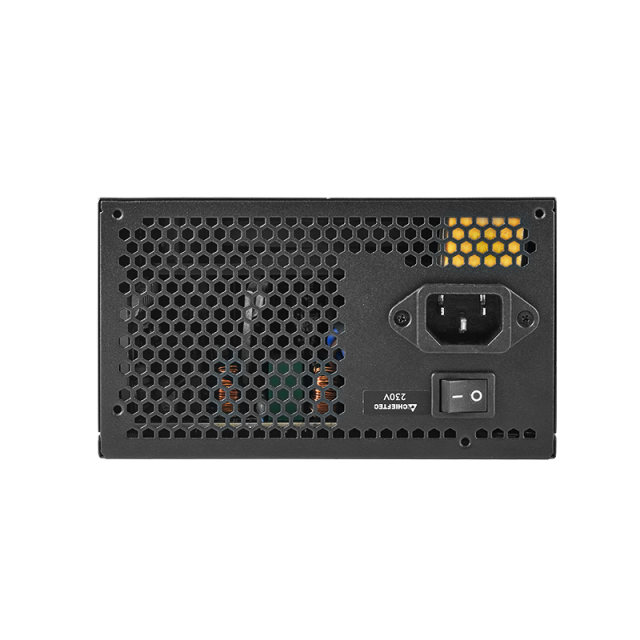

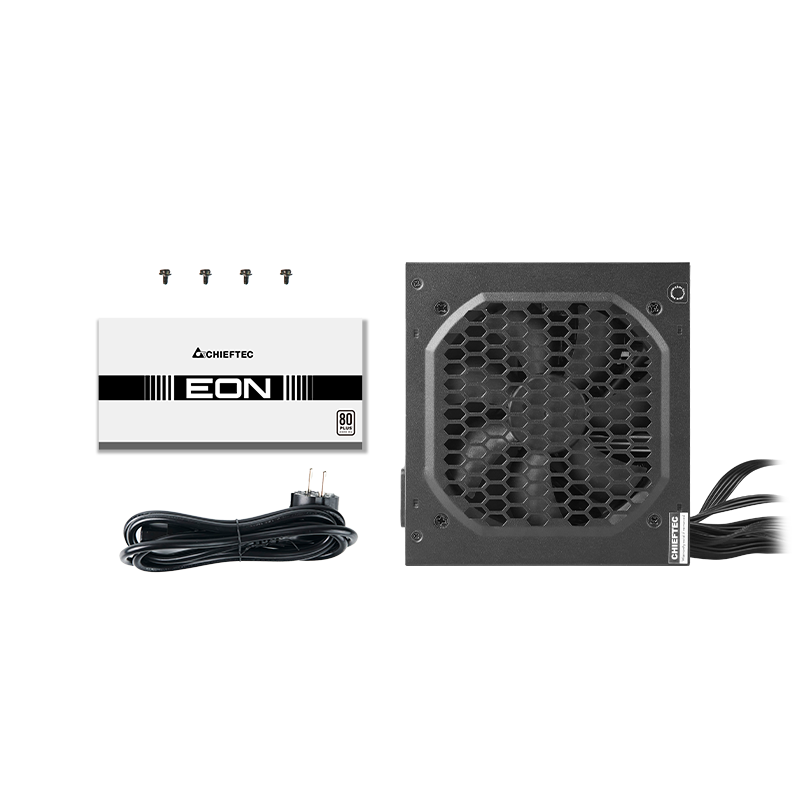

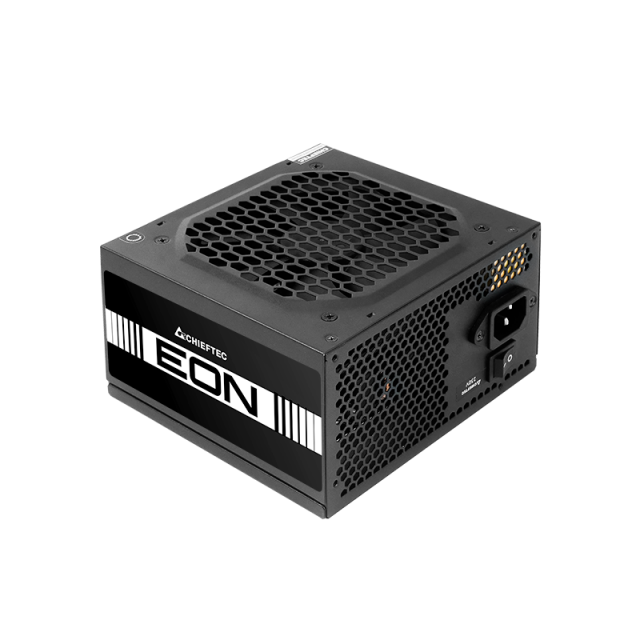

Chieftec EON ZPU-600S / 600W

Availability: Sold out

Quick overview from the supplier:

Power Supply ATX 600W Chieftec EON ZPU-600S, 80+, 120mm, Active PFC, Long cables, Black . TECHNICAL DATA Model EON 600W Article no. ZPU-600S EAN code  0753263078438 Weight (without/with package) 1.34kg / 1.62kg AC Input 200-240V / 4.5A Frequency 50Hz +5V 20A +3.3V 20A +5V & +3.3V combined 100W +12V1 45A +12V2 -- +12V1, +12V2 combined 540W P.F. >0.9 -12V 0.4A / 4.8W +5VSB 2.5A / 12.5W Maximum Power 600W Connectors 20+4 PIN ATX 1 8 PIN EPS (4+4) 2 8 PIN PCIe (6+2) 2 SATA 4 MOLEX/FLOPPY 2 Cable length (mm) 20+4 PIN ATX 650 8 PIN EPS (4+4) 700/100 8 PIN PCIe (6+2) 550/150 SATA 450/150/150 MOLEX/FLOPPY 450/150/150 Features ATX12V Version ATX 12V 2.3 Efficiency 80 PLUS® 230V EU Dimension (DxWxH) 140mm x 150mm x 86mm PFC Active PFC (0.9) (only 230V) Fan 120mm silent fan Security AFC (Automatic Fan Speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)

  • Sign up to be notified when it will be in stock

Specifications

PSU Power, Watt600
! PSU Certificate 80 PLUS80 PLUS
! PSU PFCActive
! Number of power pins (cpu)4+4pin x1
PIN Power (gpu)6+2pin x2
Plug 16 pin PCIe 5.0 \ 12VHPWR (gpu)No
! PSU Modular cablesNo
! Case \ PSU Form factorATX
! PSU Fan diameter (mm)120

Video

Reviews

    Please login to leave a review
