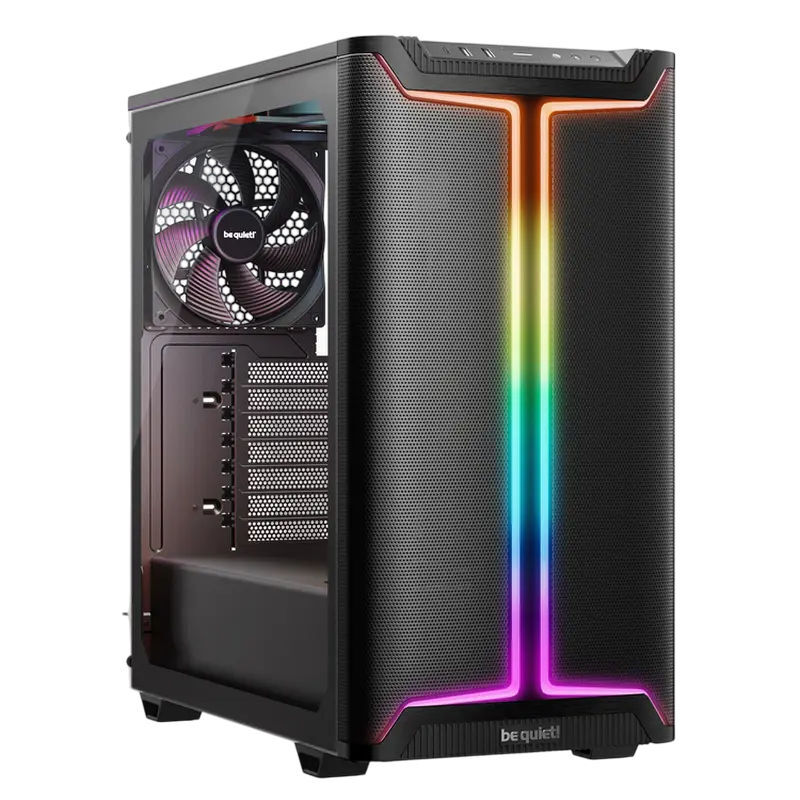

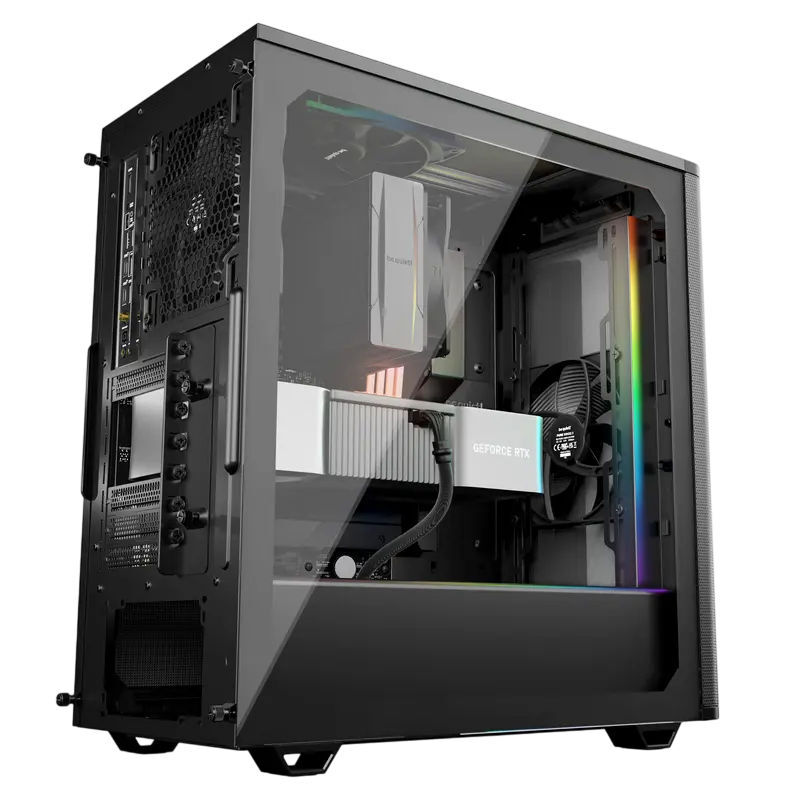

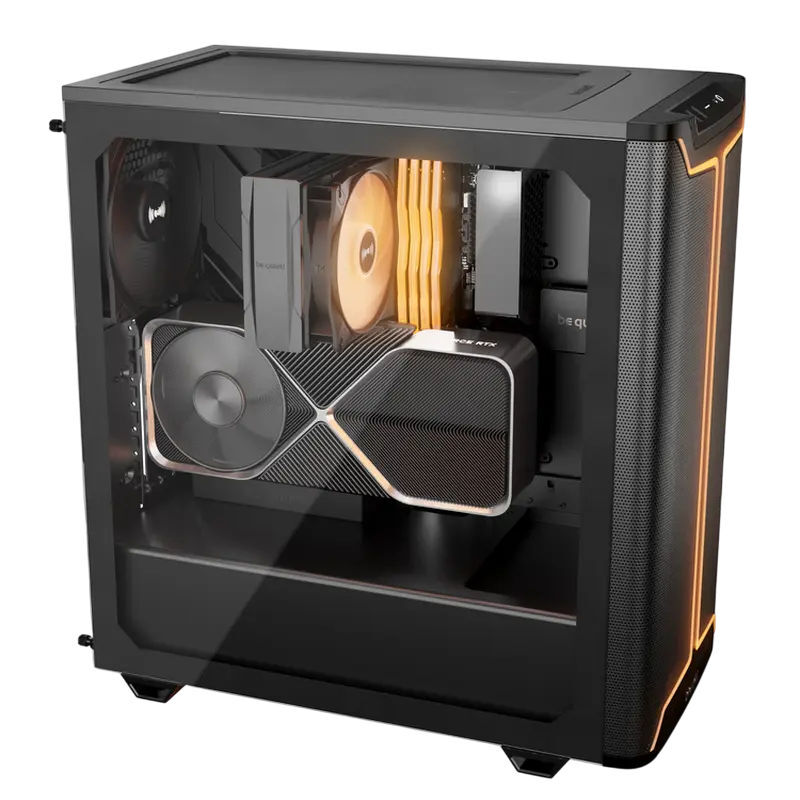

be quiet! Pure Base 501 DX Black

Availability: Sold out

Quick overview from the supplier:

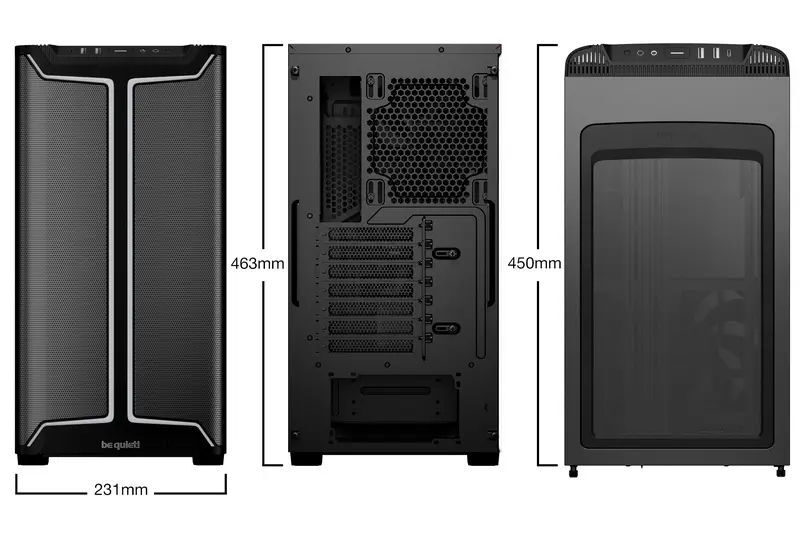

Case ATX be quiet! Pure Base 501 DX, w/o PSU, 3x140mm, 2xARGB Strips, Tempered Glass, Dust filters, 2xUSB 3.2, 1xUSB-C, 2x3.5", 5x2.5", Black . Model Pure Base 501 DX Black Color option Black Motherboard compatibility ATX / M-ATX / Mini-ATX Case size excl. stands (L x W x H), (mm) 450 x 231 x 449 Case size incl. stands (L x W x H), (mm) 450 x 231 x 463 Volume (l) 24.4 PSU form factor ATX PS/2 Net weight (kg) 7.8 Expansion slots 7 Pre-installed fans Fan at top 1x Pure Wings 3 140mm PWM Fan at front 1x Pure Wings 3 140mm PWM Fan at rear 1x Pure Wings 3 140mm PWM Dimensions (L x W x H), (mm) 140 x 25 x 140 Fan speed at 100% PWM / 12V (rpm) 1200 Airflow at 100% PWM / 12V (CFM / m3/h) 57.4 / 97.5 Air Pressure at 100% PWM / 12V (mm H2O) 0.96 Noise level at 100% PWM / 12V (dB(A)) 21.9 Voltage range (V DC) 5 - 13.2 Input power (W) 3.6 Input current (A) 0.06 Connector 4-pin PWM Lifespan (h / 25°C) 80,000 Maximum fan installation Maximum fans 6 Top (mm) 2x 140 / 2x 120 Front (mm) 2x 140 / 3x 120 Rear (mm) 1x 140 / 1x 120 Optional radiator installation Top (mm) 120 / 240 Front (mm) 120 / 140 / 240 / 280 / 360 Rear (mm) 120 / 140 PSU compatibility Maximum dimensions excl. bottom fan (mm) 200 Maximum dimensions incl. bottom fan (mm) 180 Graphics card HDD cage (in height of graphics card) installed (mm) 368 HDD cage (in height of graphics card) removed (mm) 368 Maximum PCIe slots with vertical graphics card (pcs.) 5 Drive bay capacity 3.5 slots (scope of delivery) 2 3.5 slots (max.) 2 2.5 slots (scope of delivery) 5 2.5 slots (max.) 5 I/O Panel USB 3.2 Gen. 2 Type C 1 USB 3.2 Type A 2 HD Audio I/O Mic + Audio Insulation and damping Side panel insulation mats ✓ Anti-vibration decoupled HDD ✓ Anti-vibration decoupled PSU ✓

  • Sign up to be notified when it will be in stock

Specifications

! Case \ PSU Form factorATX
! CASE Windows on the side1
! CASE Number of fans3x 140
Backlight (ram\fan)ARGB
!Radiator, mm360
The maximum length of the video card (mm)368
! CASE Power supplyNo
