GIGABYTE B550 AORUS Elite AX ATX Socket AM4 AMD B550

1 / 5

GIGABYTE B550 AORUS Elite AX ATX Socket AM4 AMD B550

Write Your Review

Warranty: 36 months

Product id: 109656

Availability: many at depo

Regular Price:3 804 MDL

Special Price 3 337 MDL

Convert

Price rates of the National Bank of Moldova - 14.06.2025

197
170
15785
854 RON
8167 UAH

348 MDL/month

+- in credit from EasyCredit

Quick overview from the supplier:

MB AM4 Gigabyte B550 AORUS ELITE AX V2 ATX // CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors Chipset AMD B550 Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Onboard Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Maximum shared memory of 16 GB Audio Realtek® ALC1200 codec Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) Wireless Communication module Intel® Wi-Fi 6 AX200 WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5 Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode 1 x PCI Express x16 slot (PCIEX2) 1 x PCI Express x16 slot (PCIEX1_2) 1 x PCI Express x1 slot (PCIEX1_1) Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10 USB 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 1 port on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers

Qty:

Specifications

! Case \ PSU Form factor	ATX
Socket CPU	AM4
! Number of power pins (cpu)	4+4pin x1
Chipset	B550
! RAM \ KIT	4
! RAM \ DDR	DDR4
Supported frequency, MT/s (ram)	4733
! RAM \ DIMM	DIMM (pc)
Number of PCI-E x16 (gpu)	3
Interface PCI-E 5.0 x16 (gpu)	No
Number of slots M.2 PCIe (ssd)	2
interface M.2 PCIe 5.0 x4 (ssd)	No
! Number of PCI-E x 1 slots	1
Number of SATA connectors	4

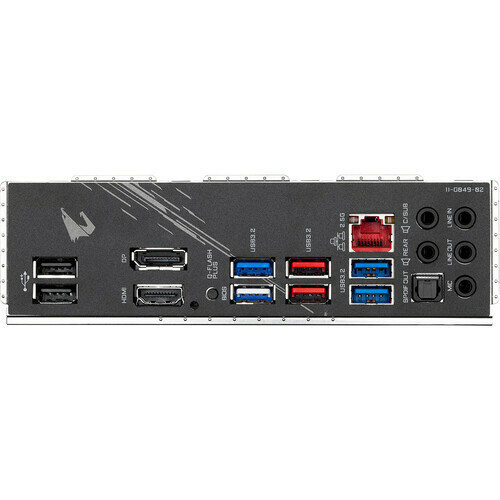

Rear I/O Panel
USB Type-A	8
USB Type-C	No
Thunderbolt (Type-C)	No
Network Connector (RJ-45)	2.5Gb
HDMI Port	1
DisplayPort	1
DVI Port	No
VGA (D-Sub) Port	No
PS/2 connector	No
