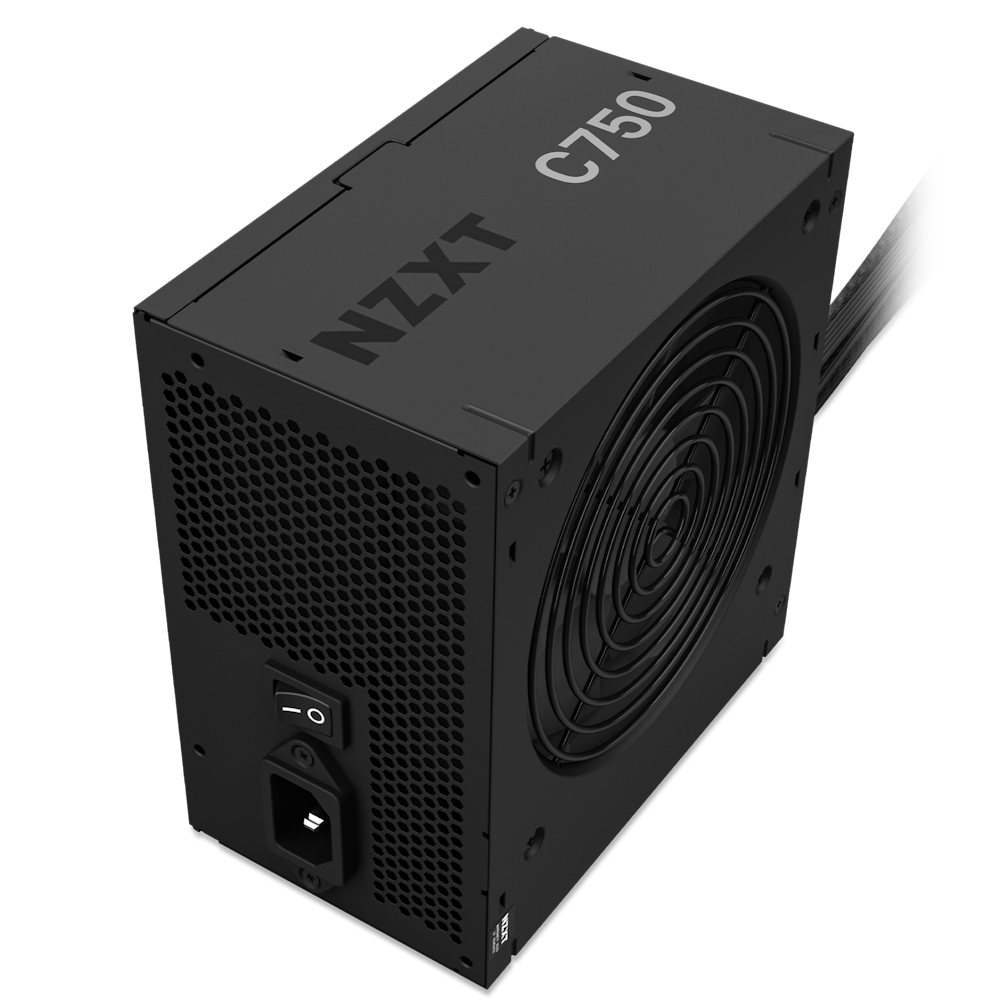

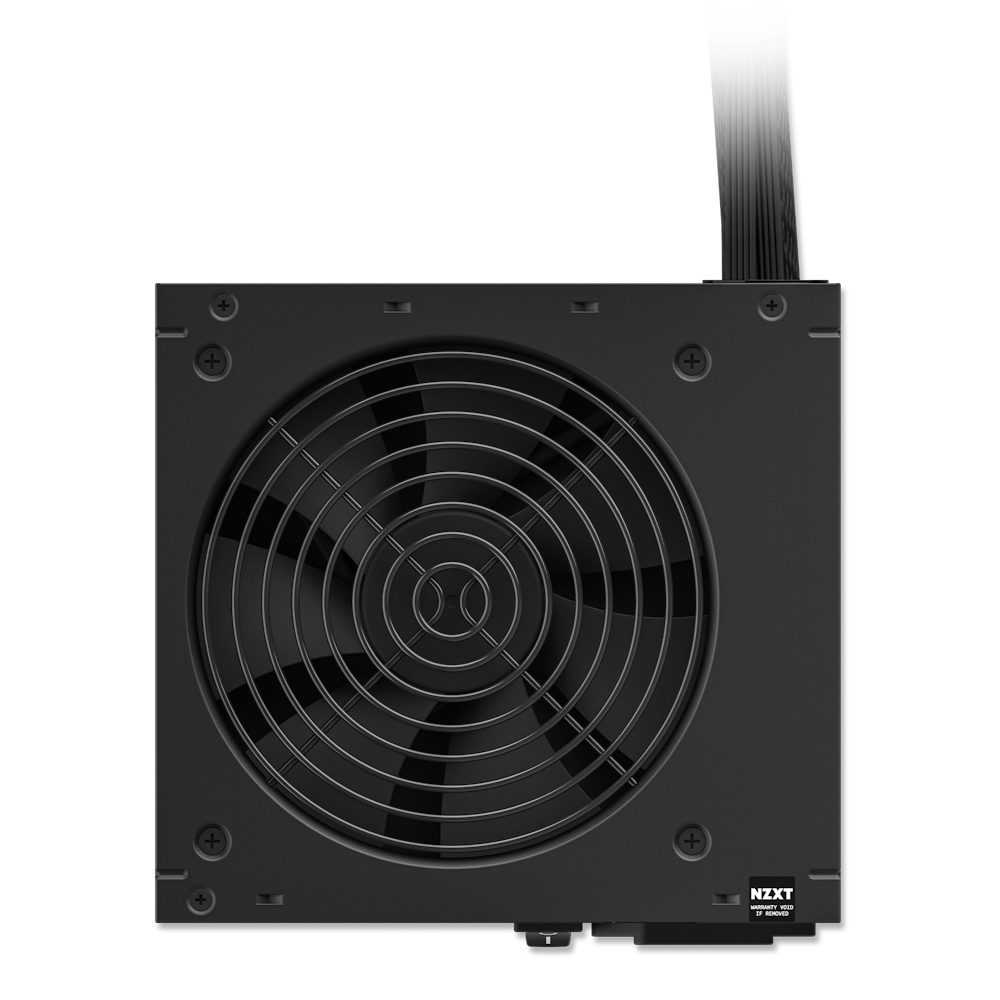

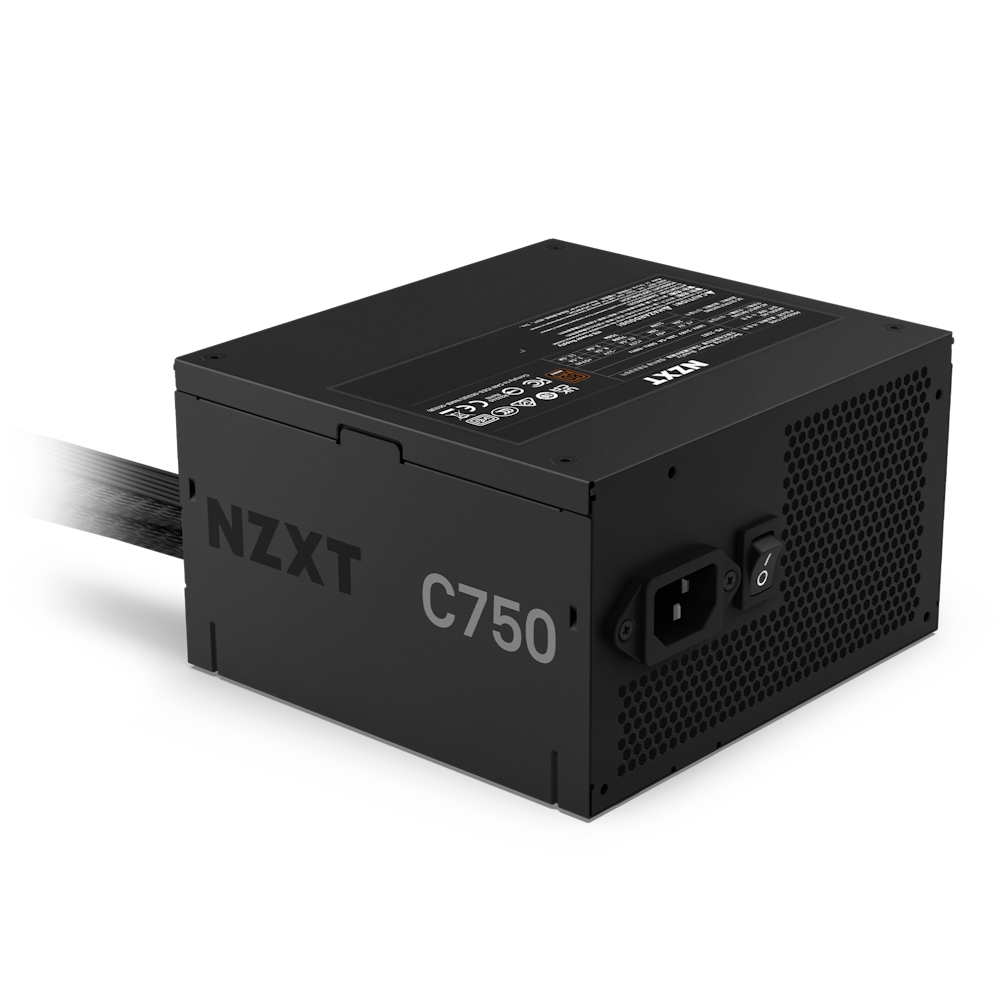

NZXT C750 / 750W 80+ Bronze Active PFC

Краткая информация от поставщика:

Power Supply ATX 750W NZXT C750, 80+ Bronze, 120mm, Active PFC, DC/DC, Black . PN: PA-7B2BB-EU Tech Specs OUTPUT CONNECTOR(S) 24-pin ATX Power 1 4+4-pin CPU power 2 6+2-pin PCIe power 2 SATA Power 4 Peripherals 4 CABLE SPECS 24-pin ATX power 600mm, Nylon sleeving 4+4-pin CPU power 700mm, Nylon sleeving 6+2-pin PCIe power 650 + 150mm, Nylon sleeving SATA power 500 + 150 mm Peripherals 500 + 150 mm AC INPUT RATING 100 - 240Vac 10A-5A 50Hz-60Hz DC OUTPUT RATING +3.3V 20A (120W) +5V 20A (120W) +12V 62.5A (750W) -12V 0.3A (3.6W) 5Vsb 2.5A (12.5W) Total 750W OPERATION PF Correction Active@0.96 MTBF 100,000 hours Operation Temperature 0 to 40°C ENERGY EFFICIENCY Rating 80 Plus Bronze 10% loading 86.2% @115Vac 20% loading 88.97% @115Vac 50% loading 88.7% @115Vac 100% loading 83.2% @115Vac FAN SPECS Dimensions 120 x 120 x 25 (mm) Speed 2400 ±10% RPM Airflow 64.4 CFM (Tpy.) Noise 39.92 dBA max Bearing FDB (Fluid Dynamic Bearing) GENERAL Dimensions (W x L x H) 150 x 140 x 86mm Material(s) Steel, PCB and Plastic Compliance Standard ATX12V v2.53 / EPS12V v2.92 Regulation & Certification FCC, Canada, CE, CB(IEC 62368-1), BIS, UKCA, CCC, BSMI, Mexico NOM Hazardous Materials Taiwan and China RoHS Table, CP65, EU REACH Protections OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP (Short Circuit Protection) OTP (Over Temperature Protection) OPP (Over Power Protection) OCP (Over Current Protection)
