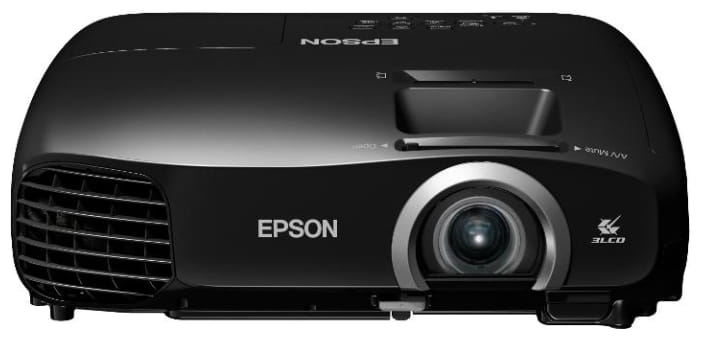

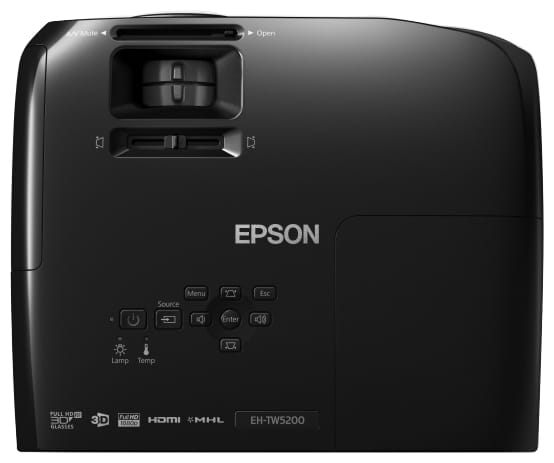

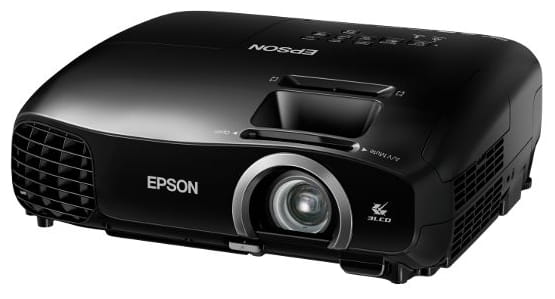

Epson EH-TW5200

1 / 4

Specifications

Device class	portable
Type of device	LCD
Recommended area of application	for home theater
Effective resolution	1920x1080 (Full HD)
The number of matrices	3.0
Widescreen
HDTV
3D support
Luminous flux (ANSI Lumen)	2000
Contrast	15000
Lamp life (hours)	5000
Lamp in eco mode (h)	6000
Number of lamps	1.0
Each lamp power (w)	200
Min. diagonal size (m)	0.86
Max. diagonal size (m)	8.33
Min. the ratio of the distances to image size	1.22
Max. the ratio of the distances to image size	1.47
Min. vertical frequency (Hz)	24
Max. frame rate (Hz)	85
Min. horizontal frequency (kHz)	15
Max. frequency (kHz)	80
Keystone correction
Keystone correction type	vertical / horizontal
HDMI Input
Number of HDMI inputs	2.0
VGA Input
Number of VGA inputs	1.0
Component video input
S-Video Input
S-Video inputs	1.0
Composite video input
Number of composite video inputs	1.0
Audio input RCA
Audio output miniJACK
USB Type A
Interface RS-232
Focal length (max.) (mm)	20.28
Focal length (min.) (mm)	16.9
F-number (F), Max	1.72
F-number (F), min	1.58
Input format support 480i
Input format support 480 p
Input format support 576i
Input format support 576 p
Input format support 720 p
Input format support 1080i
Input format support 1080 p
Number of built-in loudspeakers	1.0
Each loudspeaker power (w)	2.0
PAL
SECAM
NTSC
Width (mm)	297
Height (mm)	108
Depth (mm)	247
Weight (kg)	2.8
Lamp type	UHE
Luminous flux in eco mode (ANSI Lumen)	1400
Number of audio inputs RCA	1.0
USB Type A interface quantity	1.0
